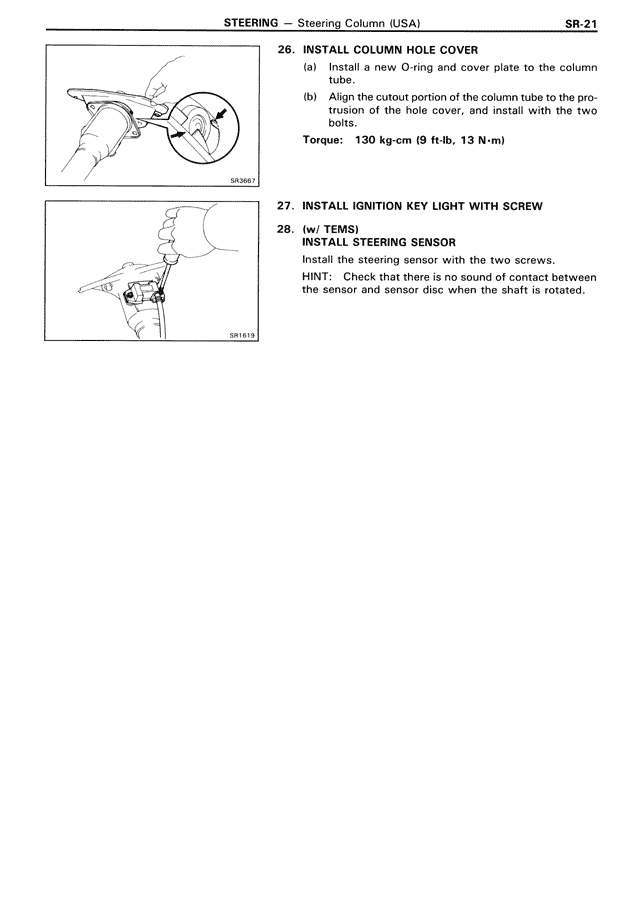

26. INSTALL COLUMN HOLE COVER
(a) Install a new O-ring and cover plate to the column tube.
(b) Align the cutout portion of the column tube to the protrusion of the hole cover, and install with the two bolts.
Torque: 130 kg·cm (9 ft·lb, 13 N·m)
27. INSTALL IGNITION KEY LIGHT WITH SCREW
28. (w/ TEMS)
INSTALL STEERING SENSOR
Install the steering sensor with the two screws.
HINT: Check that there is no sound of contact between the sensor and sensor disc when the shaft is rotated.
