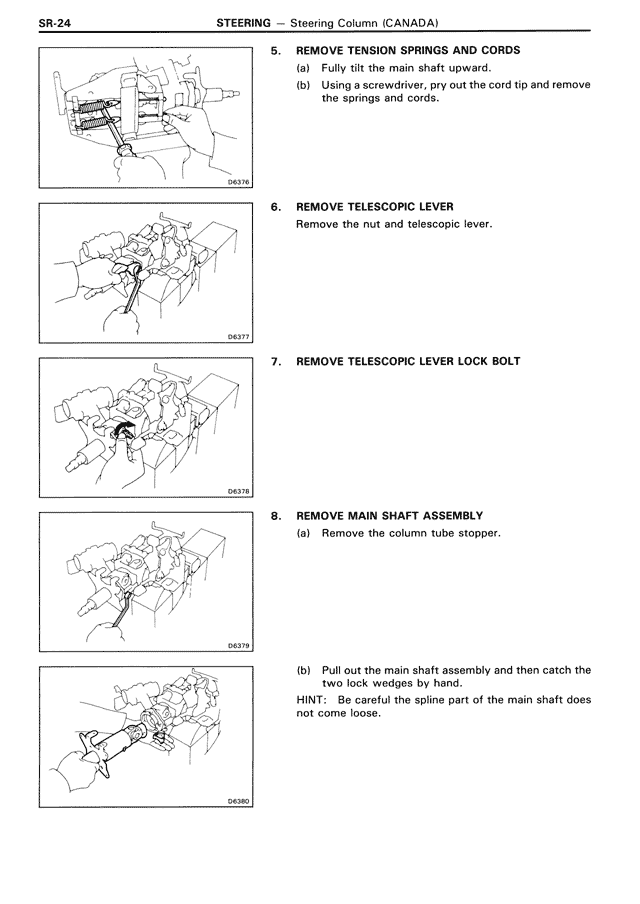

SR-24
STEERING — Steering Column (CANADA)
5. REMOVE TENSION SPRINGS AND CORDS
(a) Fully tilt the main shaft upward.
(b) Using a screwdriver, pry out the cord tip and remove the springs and cords.
D6376
6. REMOVE TELESCOPIC LEVER
Remove the nut and telescopic lever.
D6377
7. REMOVE TELESCOPIC LEVER LOCK BOLT
D6378
8. REMOVE MAIN SHAFT ASSEMBLY
(a) Remove the column tube stopper.
D6379
(b) Pull out the main shaft assembly and then catch the two lock wedges by hand.
HINT: Be careful the spline part of the main shaft does not come loose.
D6380
