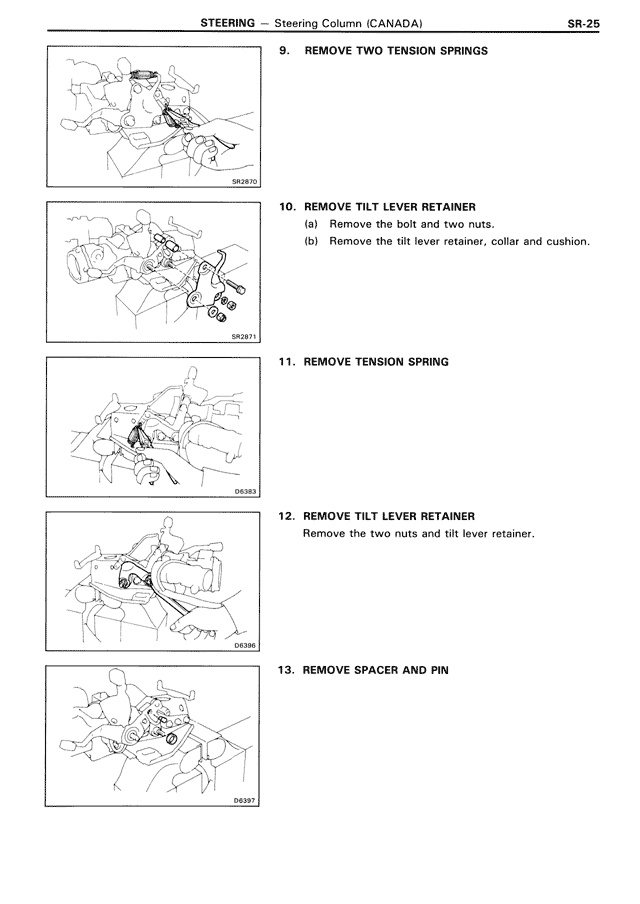

Steering page 25

9. REMOVE TWO TENSION SPRINGS 10. REMOVE TILT LEVER RETAINER (a) Remove the bolt and two nuts. (b) Remove the tilt lever retainer, collar and cushion. 11. REMOVE TENSION SPRING 12. REMOVE TILT LEVER RETAINER Remove the two nuts and tilt lever retainer. 13. REMOVE SPACER AND PIN
