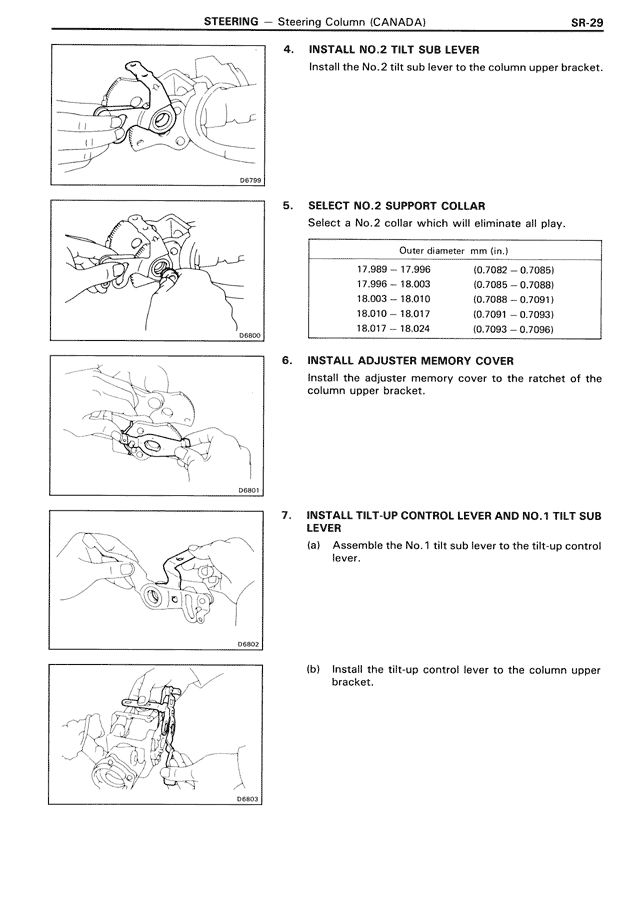

4. INSTALL NO.2 TILT SUB LEVER
Install the No.2 tilt sub lever to the column upper bracket.
5. SELECT NO.2 SUPPORT COLLAR
Select a No.2 collar which will eliminate all play.
Outer diameter mm (in.)
17.989 – 17.996 (0.7082 – 0.7085)
17.996 – 18.003 (0.7085 – 0.7088)
18.003 – 18.010 (0.7088 – 0.7091)
18.010 – 18.017 (0.7091 – 0.7093)
18.017 – 18.024 (0.7093 – 0.7096)
6. INSTALL ADJUSTER MEMORY COVER
Install the adjuster memory cover to the ratchet of the column upper bracket.
7. INSTALL TILT-UP CONTROL LEVER AND NO.1 TILT SUB LEVER
(a) Assemble the No.1 tilt sub lever to the tilt-up control lever.
(b) Install the tilt-up control lever to the column upper bracket.
