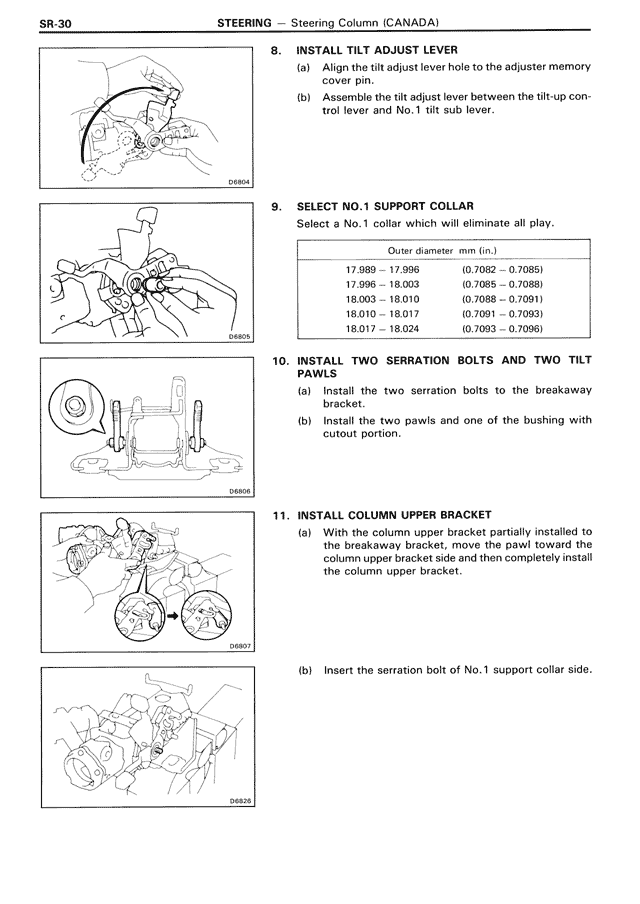

SR-30
STEERING — Steering Column (CANADA)
8. INSTALL TILT ADJUST LEVER
(a) Align the tilt adjust lever hole to the adjuster memory cover pin.
(b) Assemble the tilt adjust lever between the tilt-up control lever and No.1 tilt sub lever.
9. SELECT NO.1 SUPPORT COLLAR
Select a No.1 collar which will eliminate all play.
Outer diameter mm (in.)
17.989 - 17.996 (0.7082 - 0.7085)
17.996 - 18.003 (0.7085 - 0.7088)
18.003 - 18.010 (0.7088 - 0.7091)
18.010 - 18.017 (0.7091 - 0.7093)
18.017 - 18.024 (0.7093-0.7096)
10. INSTALL TWO SERRATION BOLTS AND TWO TILT PAWLS
(a) Install the two serration bolts to the breakaway bracket.
(b) Install the two pawls and one of the bushing with cutout portion.
11. INSTALL COLUMN UPPER BRACKET
(a) With the column upper bracket partially installed to the breakaway bracket, move the pawl toward the column upper bracket side and then completely install the column upper bracket.
(b) Insert the serration bolt of No.1 support collar side.
D6804
D6805
D6806
D6807
D6826
