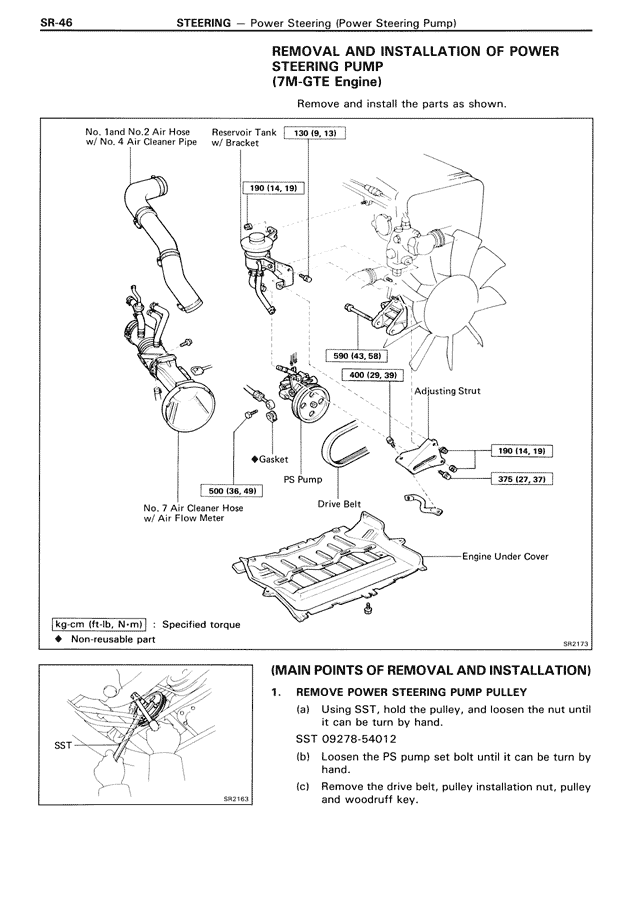

SR-46
STEERING — Power Steering (Power Steering Pump)
REMOVAL AND INSTALLATION OF POWER STEERING PUMP
(7M-GTE Engine)
Remove and install the parts as shown.
No. 1and No.2 Air Hose w/ No. 4 Air Cleaner Pipe
Reservoir Tank w/ Bracket
130 (9, 13)
190 (14, 19)
590 (43, 60)
400 (29, 39)
Adjusting Strut
♦Gasket
190 (14, 19)
375 (27, 37)
500 (36, 49)
No. 7 Air Cleaner Hose w/ Air Flow Meter
PS Pump
Drive Belt
Engine Under Cover
[kg·cm (ft·lb, N·m)] : Specified torque
♦ Non-reusable part
SR2173
(MAIN POINTS OF REMOVAL AND INSTALLATION)
1. REMOVE POWER STEERING PUMP PULLEY
(a) Using SST, hold the pulley, and loosen the nut until it can be turn by hand.
SST 09278-54012
(b) Loosen the PS pump set bolt until it can be turn by hand.
(c) Remove the drive belt, pulley installation nut, pulley and woodruff key.
SST
SR2183
