Power Steering Pump
REMOVAL AND INSTALLATION OF POWER
STEERING PUMP
(7M-GE Engine)

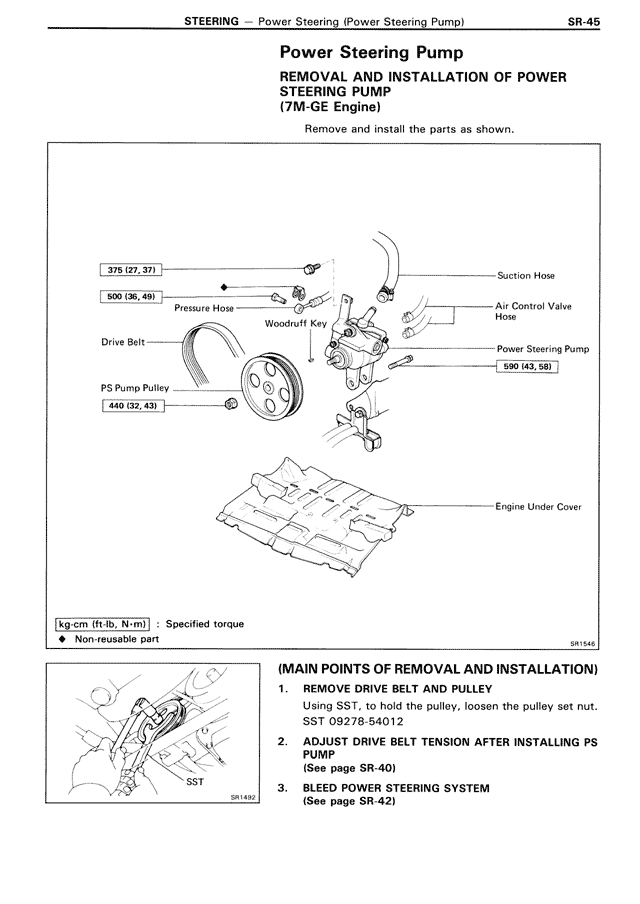

Remove and install the parts as shown.
375 (27, 37)
500 (36, 49)
Pressure Hose
Woodruff Key
Drive Belt
PS Pump Pulley
440 (32, 43)
Suction Hose
Air Control Valve
Hose
Power Steering Pump
590 (43, 58)
Engine Under Cover
[kg·cm (ft·lb, N·m)] : Specified torque
♦ Non-reusable part
SR1442
(MAIN POINTS OF REMOVAL AND INSTALLATION)
1. REMOVE DRIVE BELT AND PULLEY
Using SST, to hold the pulley, loosen the pulley set nut.
SST 09278-54012
2. ADJUST DRIVE BELT TENSION AFTER INSTALLING PS
PUMP
(See page SR-40)
3. BLEED POWER STEERING SYSTEM
(See page SR-42)
SST
SR1442
