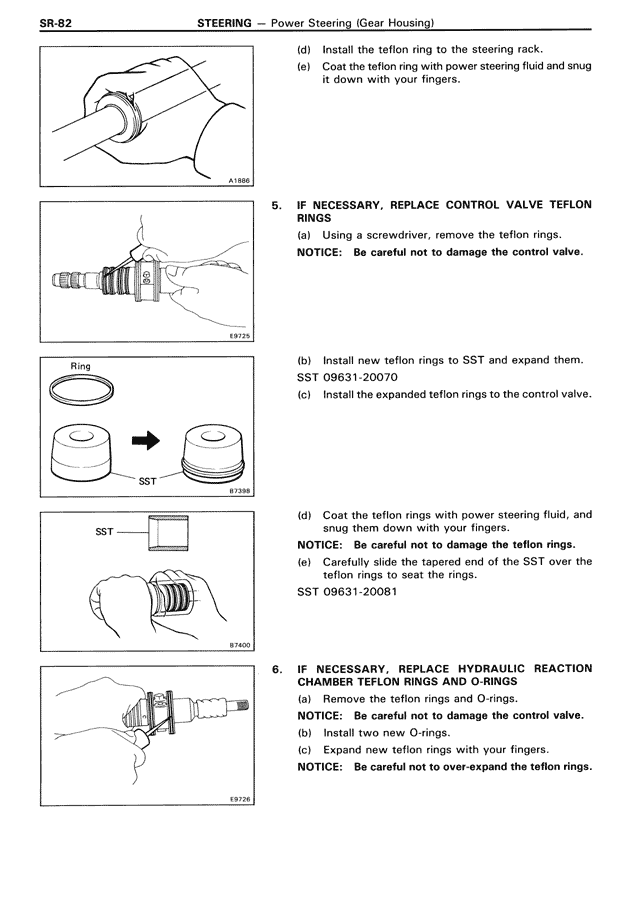

SR-82 STEERING — Power Steering (Gear Housing)
(d) Install the teflon ring to the steering rack.
(e) Coat the teflon ring with power steering fluid and snug it down with your fingers.
5. IF NECESSARY, REPLACE CONTROL VALVE TEFLON RINGS
(a) Using a screwdriver, remove the teflon rings.
NOTICE: Be careful not to damage the control valve.
(b) Install new teflon rings to SST and expand them.
SST 09631-20070
(c) Install the expanded teflon rings to the control valve.
(d) Coat the teflon rings with power steering fluid, and snug them down with your fingers.
NOTICE: Be careful not to damage the teflon rings.
(e) Carefully slide the tapered end of the SST over the teflon rings to seat the rings.
SST 09631-20081
6. IF NECESSARY, REPLACE HYDRAULIC REACTION CHAMBER TEFLON RINGS AND O-RINGS
(a) Remove the teflon rings and O-rings.
NOTICE: Be careful not to damage the control valve.
(b) Install two new O-rings.
(c) Expand new teflon rings with your fingers.
NOTICE: Do not over-expand the teflon rings.
