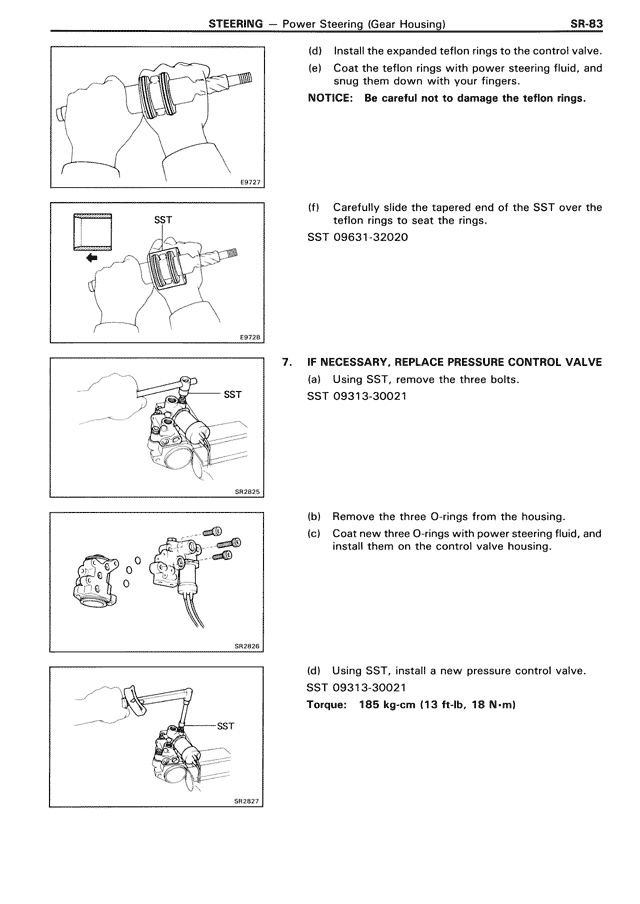

STEERING — Power Steering (Gear Housing)
SR-83
(d) Install the expanded teflon rings to the control valve.
(e) Coat the teflon rings with power steering fluid, and press them down with your fingers.
NOTICE: Be careful not to damage the teflon rings.
(f) Carefully slide the tapered end of the SST over the teflon rings to seat the rings.
SST 09631-32020
7. IF NECESSARY, REPLACE PRESSURE CONTROL VALVE
(a) Using SST, remove the three bolts.
SST 09313-30021
(b) Remove the three O-rings from the housing.
(c) Coat new three O-rings with power steering fluid, and install them on the control valve housing.
(d) Using SST, install a new pressure control valve.
SST 09313-30021
Torque: 185 kg-cm (13 ft-lb, 18 N-m)
