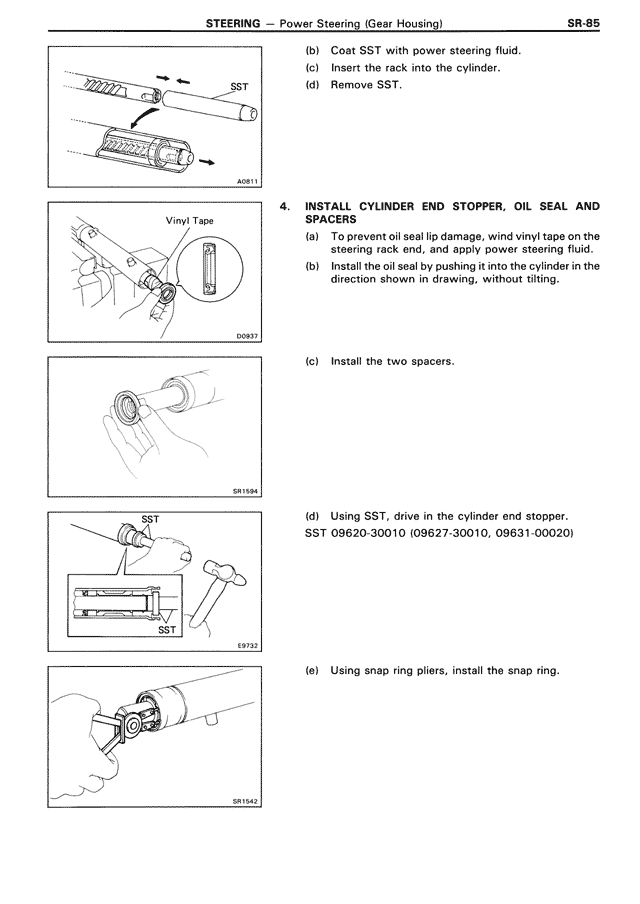

STEERING — Power Steering (Gear Housing)
SR-85
(b) Coat SST with power steering fluid.
(c) Insert the rack into the cylinder.
(d) Remove SST.
4. INSTALL CYLINDER END STOPPER, OIL SEAL AND SPACERS
(a) To prevent oil seal lip damage, wind vinyl tape on the steering rack end, and apply power steering fluid.
(b) Install the oil seal by pushing it into the cylinder in the direction shown in drawing, without tilting.
(c) Install the two spacers.
(d) Using SST, drive in the cylinder end stopper.
SST 09620-30010 (09627-30010, 09631-00020)
(e) Using snap ring pliers, install the snap ring.
