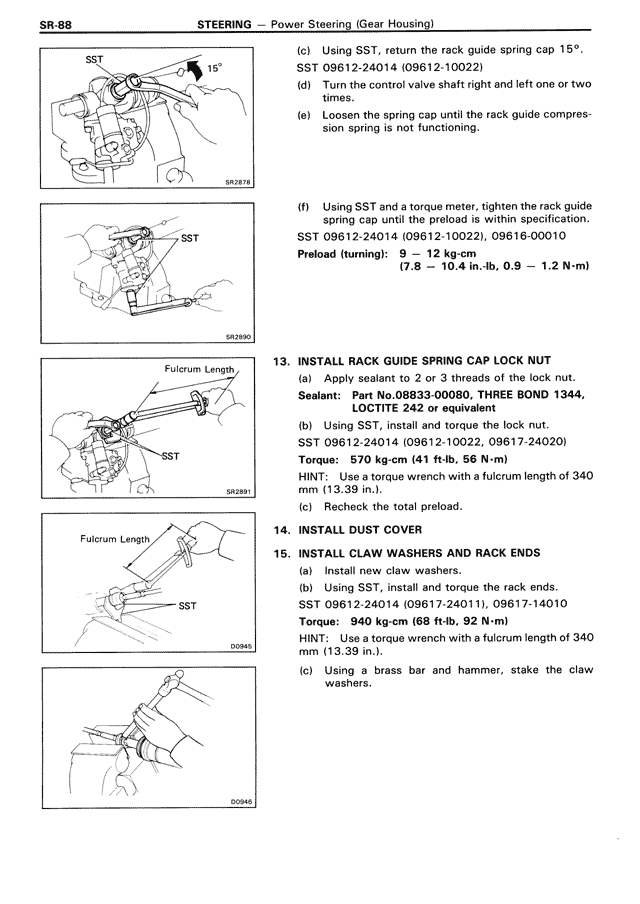

SR-88
STEERING — Power Steering (Gear Housing)
(c) Using SST, return the rack guide spring cap 15°.
SST 09612-24014 (09612-10022)
(d) Turn the control valve shaft right and left one or two times.
(e) Loosen the spring cap until the rack guide compression spring is not functioning.
(f) Using SST and a torque meter, tighten the rack guide spring cap until the preload is within specification.
SST 09612-24014 (09612-10022), 09616-00010
Preload (turning): 9 — 12 kg-cm
(7.8 — 10.4 in.-lb, 0.9 — 1.2 N-m)
13. INSTALL RACK GUIDE SPRING CAP LOCK NUT
(a) Apply sealant to 2 or 3 threads of the lock nut.
Sealant: Part No.08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
(b) Using SST, install and torque the lock nut.
SST 09612-24014 (09612-10022, 09617-24020)
Torque: 570 kg-cm (41 ft-lb, 56 N-m)
HINT: Use a torque wrench with a fulcrum length of 340 mm (13.39 in.).
(c) Recheck the total preload.
14. INSTALL DUST COVER
15. INSTALL CLAW WASHERS AND RACK ENDS
(a) Install new claw washers.
(b) Using SST, install and torque the rack ends.
SST 09612-24014 (09617-24011), 09617-14010
Torque: 940 kg-cm (68 ft-lb, 92 N-m)
HINT: Use a torque wrench with a fulcrum length of 340 mm (13.39 in.).
(c) Using a brass bar and hammer, stake the claw washers.
