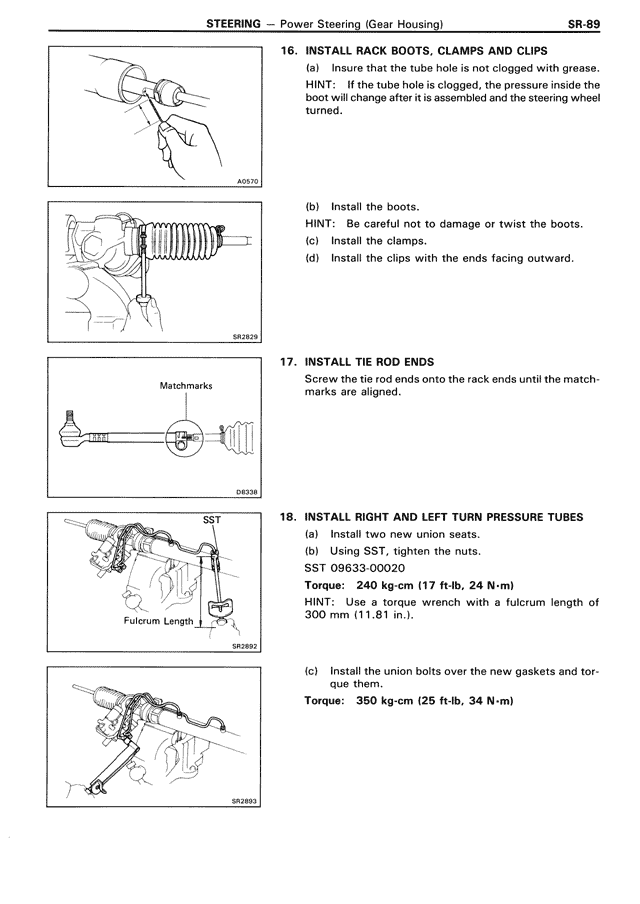

STEERING — Power Steering (Gear Housing) SR-89 16. INSTALL RACK BOOTS, CLAMPS AND CLIPS (a) Insure that the tube hole is not clogged with grease. HINT: If the tube hole is clogged, the pressure inside the boot will change after it is assembled and the steering wheel turned. (b) Install the boots. HINT: Be careful not to damage or twist the boots. (c) Install the clamps. (d) Install the clips with the ends facing outward. 17. INSTALL TIE ROD ENDS Screw the tie rod ends onto the rack ends until the match- marks are aligned. 18. INSTALL RIGHT AND LEFT TURN PRESSURE TUBES (a) Install two new union seats. (b) Using SST, tighten the nuts. SST 09633-00020 Torque: 240 kg-cm (17 ft-lb, 24 N·m) HINT: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.). (c) Install the union bolts over the new gaskets and tor- que them. Torque: 350 kg-cm (25 ft-lb, 34 N·m)
