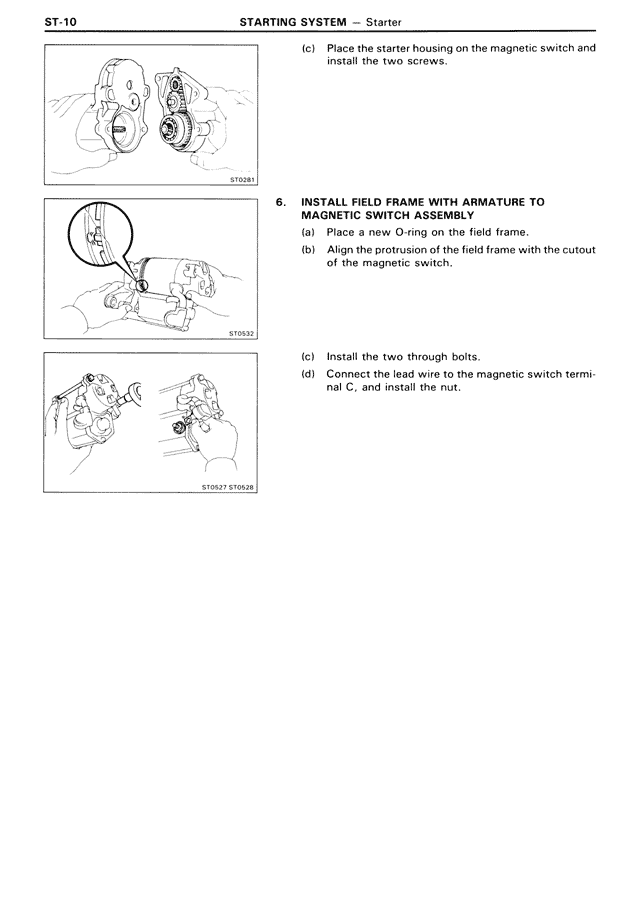

ST-10
STARTING SYSTEM — Starter
(c) Place the starter housing on the magnetic switch and install the two screws.
6. INSTALL FIELD FRAME WITH ARMATURE TO MAGNETIC SWITCH ASSEMBLY
(a) Place a new O-ring on the field frame.
(b) Align the protrusion of the field frame with the cutout of the magnetic switch.
(c) Install the two through bolts.
(d) Connect the lead wire to the magnetic switch terminal C, and install the nut.
ST0281
ST0632
ST0627 ST0628
