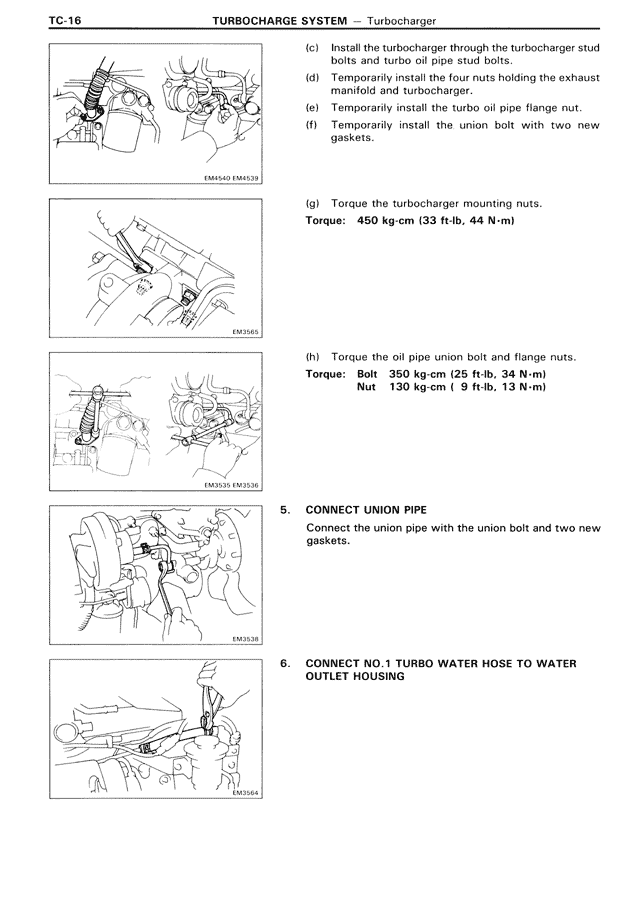

TC-16 TURBOCHARGE SYSTEM — Turbocharger (c) Install the turbocharger through the turbocharger stud bolts and turbo oil pipe stud bolts. (d) Temporarily install the four nuts holding the exhaust manifold and turbocharger. (e) Temporarily install the turbo oil pipe flange nut. (f) Temporarily install the union bolt with two new gaskets. (g) Torque the turbocharger mounting nuts. Torque: 450 kg·cm (33 ft·lb, 44 N·m) (h) Torque the oil pipe union bolt and flange nuts. Torque: Bolt 350 kg·cm (25 ft·lb, 34 N·m) Nut 130 kg·cm ( 9 ft·lb, 13 N·m) 5. CONNECT UNION PIPE Connect the union pipe with the union bolt and two new gaskets. 6. CONNECT NO.1 TURBO WATER HOSE TO WATER OUTLET HOUSING
