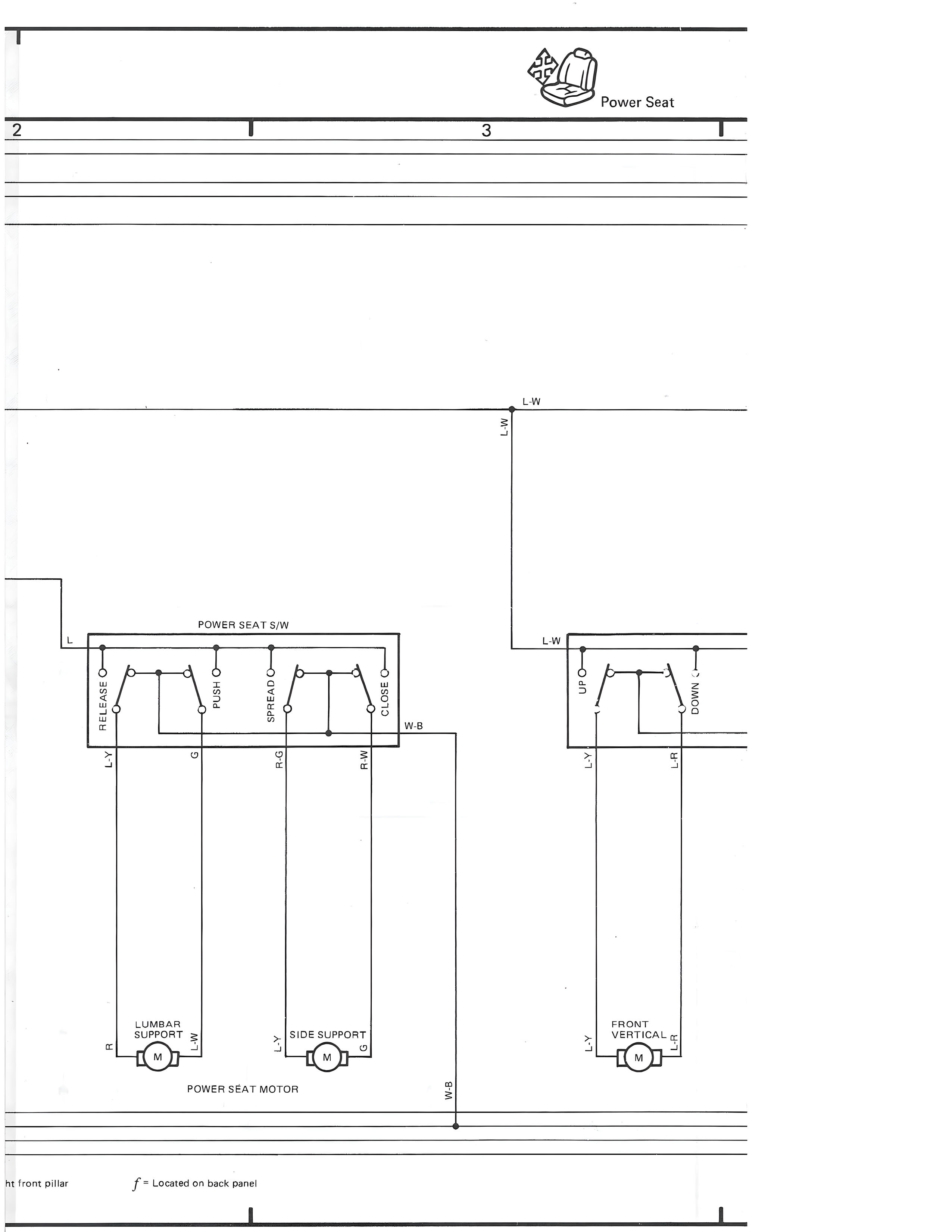

OWD/Overall Wiring Diagram — Power Seat Circuit, page 18

Power Seat
1
2
3
L-W
J-W
POWER SEAT S/W
RELEASE-C
PUSH-C
SPREAD-C
CLOSE-C
W-B
L-Y
G
B-R
P-R
L-W
L-W
UP-C
DOWN-C
L-Y
R
LUMBAR
SUPPORT
SIDE SUPPORT
FRONT
VERTICAL
R
W
L-Y
L-Y
L-Y
B
M
M
M
POWER SEAT MOTOR
H-B
ht front pillar
f = Located on back panel
