Overall Wiring Diagram p.33 — MK3 Supra EWD | TSRM

TSRM/MK3 Supra/Wiring Diagrams

Repair Manual Wiring Diagrams

MK3

40 sections · 162 pages

INTROIntroduction & How To Use6 TRBLTroubleshooting2 GLOSGlossary of Terms and Symbols2 S1Power Source4 S2Starting and Ignition Systems4 S3EFI System12 S4Charging System2 S5Light Auto Turn Off System2 S6Turn Signal and Hazard Warning Lights2 S7Headlights3 S8Fog Lights1 S9Interior Lights3 S10Back-Up Lights1 S11Stop Lights2 S12Taillights and Illumination5 S13Remote Control Mirrors1 S14Rear Window Defogger and Mirror Heater2 S15Front Wiper and Washer2 S16Door Locks3 S17Rear Wiper and Washer1 S18Power Windows2 S19Power Seat2 S20Cruise Control4 S21ECT System4 S22Anti-Lock Brake System (ABS)4 S23Headlight Cleaner1 S24Cigarette Lighter and Clock1 S25TEMS5 S26Unlock and Seat Belt Warning1 S27Super Monitor3 S28Horns1 S29Theft Deterrent System4 S30Auto Antenna2 S31Radio and Tape Player2 S32Combination Meter4 S33Automatic Air Conditioner8 S34Ground Points4 RLRelay Locations3 EWRElectrical Wiring Routing5 OWDOverall Wiring Diagram42

OWD/Overall Wiring Diagram33 / 42

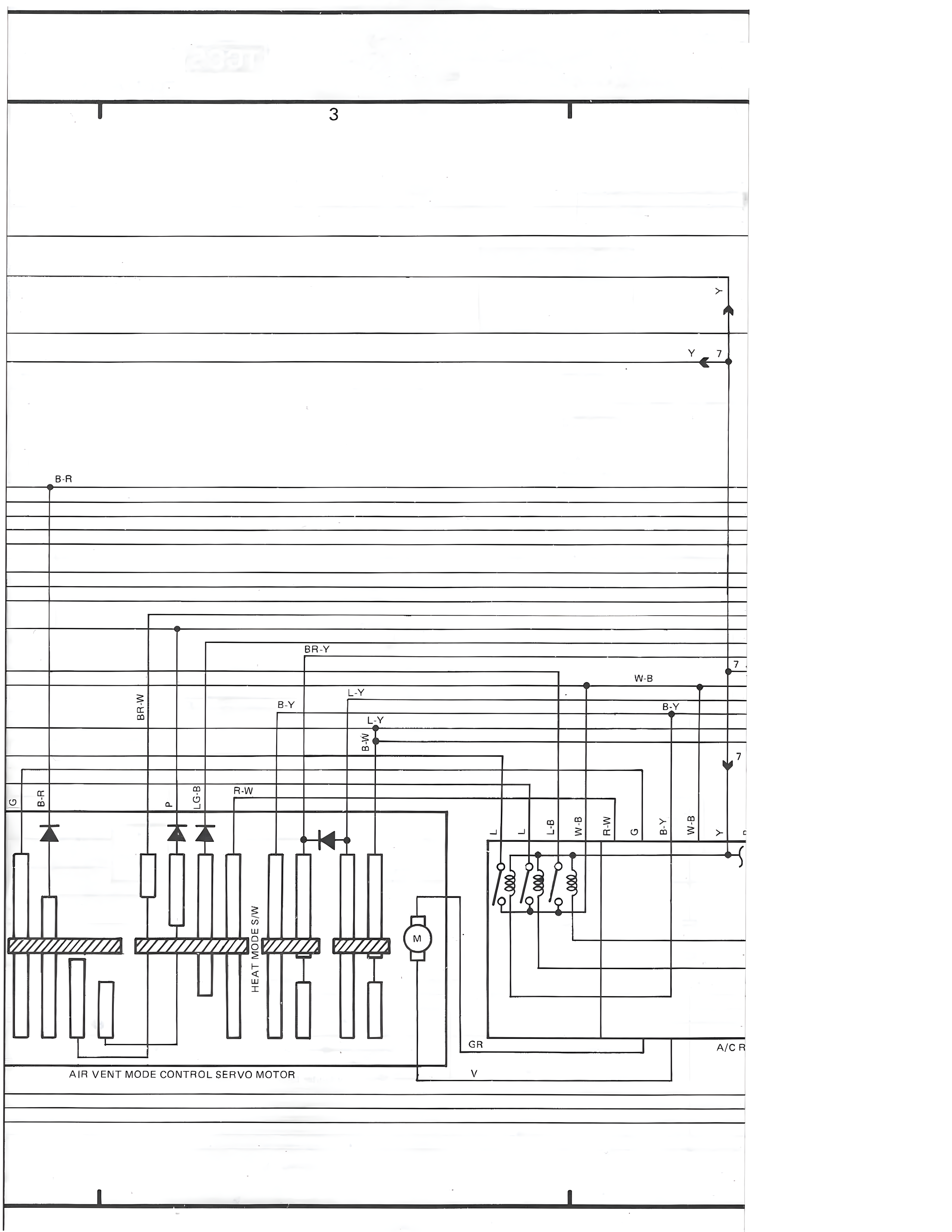

AIR VENT MODE CONTROL SERVO MOTOR — MK3 Supra Overall Wiring Diagram wiring diagram, page 33

100%

1 3 > Y 7 B-R BR-Y W-B B-Y L-Y B-Y L-Y B-W G B-R B G-B R-W L-B W-B R-W G B-Y W-B Y A/C R AIR VENT MODE CONTROL SERVO MOTOR V GR A
