RL/Relay Locations1 / 3

Relay Locations page 1

100%

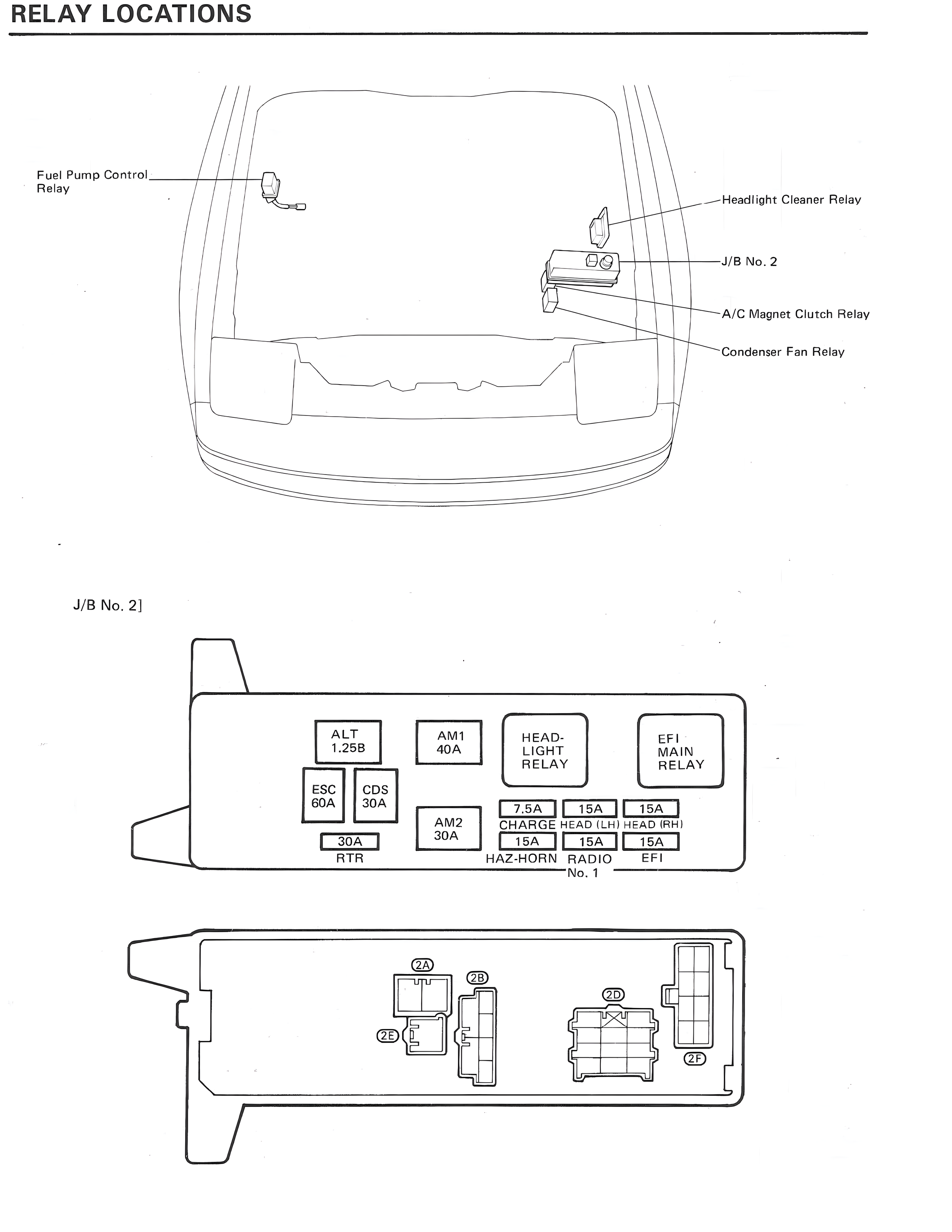

RELAY LOCATIONS Fuel Pump Control Relay Headlight Cleaner Relay J/B No. 2 A/C Magnet Clutch Relay Condenser Fan Relay J/B No. 2] ALT 1.25B AM1 40A HEAD-LIGHT RELAY EFI MAIN RELAY ESC CDS 30A AM2 30A 7.5A CHARGE HEAD (LH) HEAD (RH) 15A 15A 15A 15A 15A 30A RTR HAZ-HORN RADIO No. 1 EFI 2A 2B 2D 2E 2F
