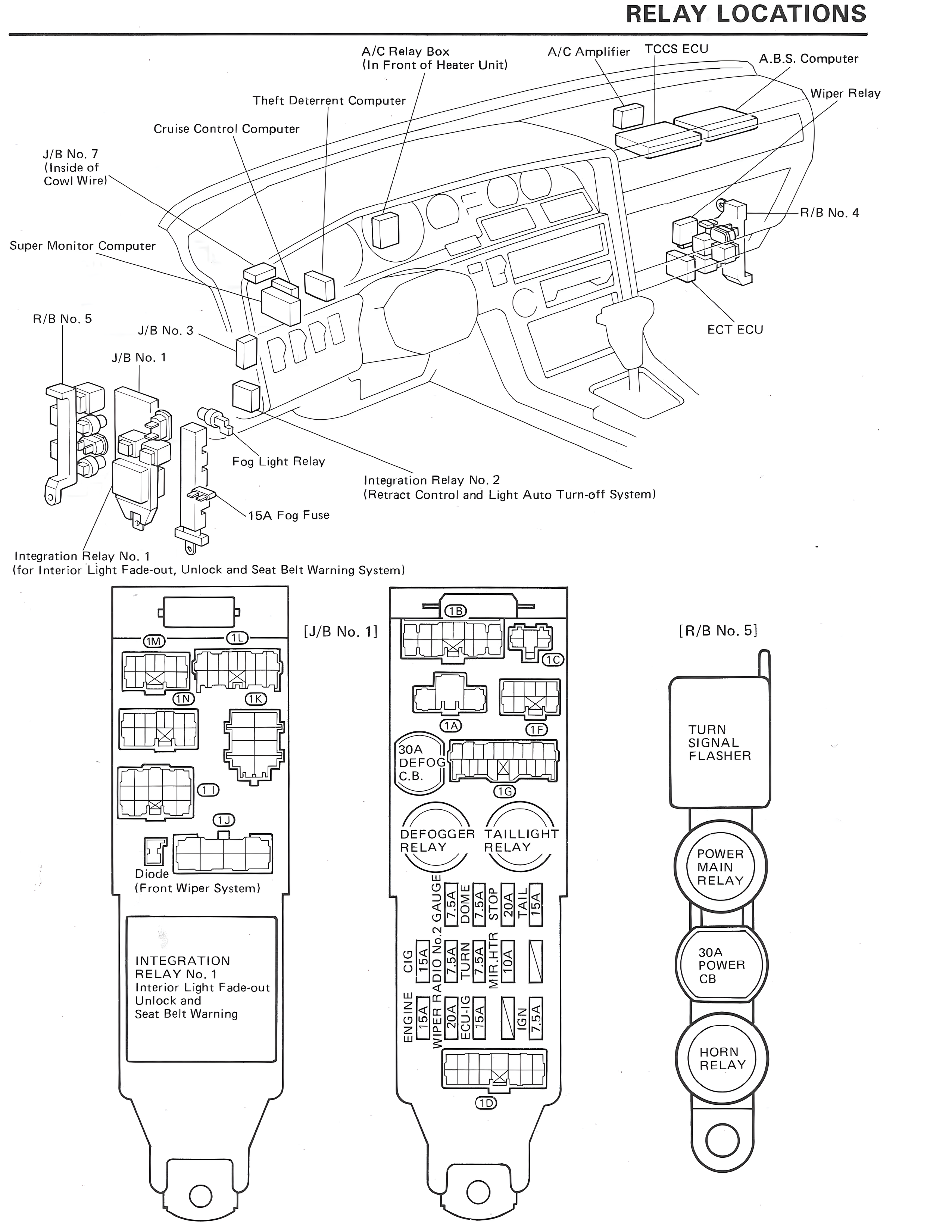

RELAY LOCATIONS A/C Relay Box (In Front of Heater Unit) A/C Amplifier TCCS ECU A.B.S. Computer Wiper Relay Theft Deterrent Computer Cruise Control Computer J/B No. 7 (Inside of Cowl Wire) Super Monitor Computer R/B No. 4 R/B No. 5 J/B No. 3 J/B No. 1 ECT ECU Fog Light Relay 15A Fog Fuse Integration Relay No. 2 (Retract Control and Light Auto Turn-off System) Integration Relay No. 1 (for Interior Light Fade-out, Unlock and Seat Belt Warning System) [J/B No. 1] 1M 1L 1M 1N 1K 1J 1I Diode (Front Wiper System) INTEGRATION RELAY No. 1 Interior Light Fade-out Unlock Seat Belt Warning [J/B No. 1] 1B 1A 1F 30A DEFOG C.B. 1G DEFOGGER RELAY TAILLIGHT RELAY C/OPN 2 GAUGE 3 DOME 4 DOME 5 STOP 6 TAIL 7 TAIL C OPN D ST E OPN 2 F OPN 2 GAUGE G DEF H DEF I RR J DEF K DOME L TAIL M ST N ST ENGINE WIPER 1 WIPER 2 REAR CIG FOG SEAT TURN A/C DEF 1D [R/B No. 5] TURN SIGNAL FLASHER POWER MAIN RELAY 30A POWER CB HORN RELAY
