← p.002
RL
/
Relay Locations
3 / 3
EWR →
−
100%
+

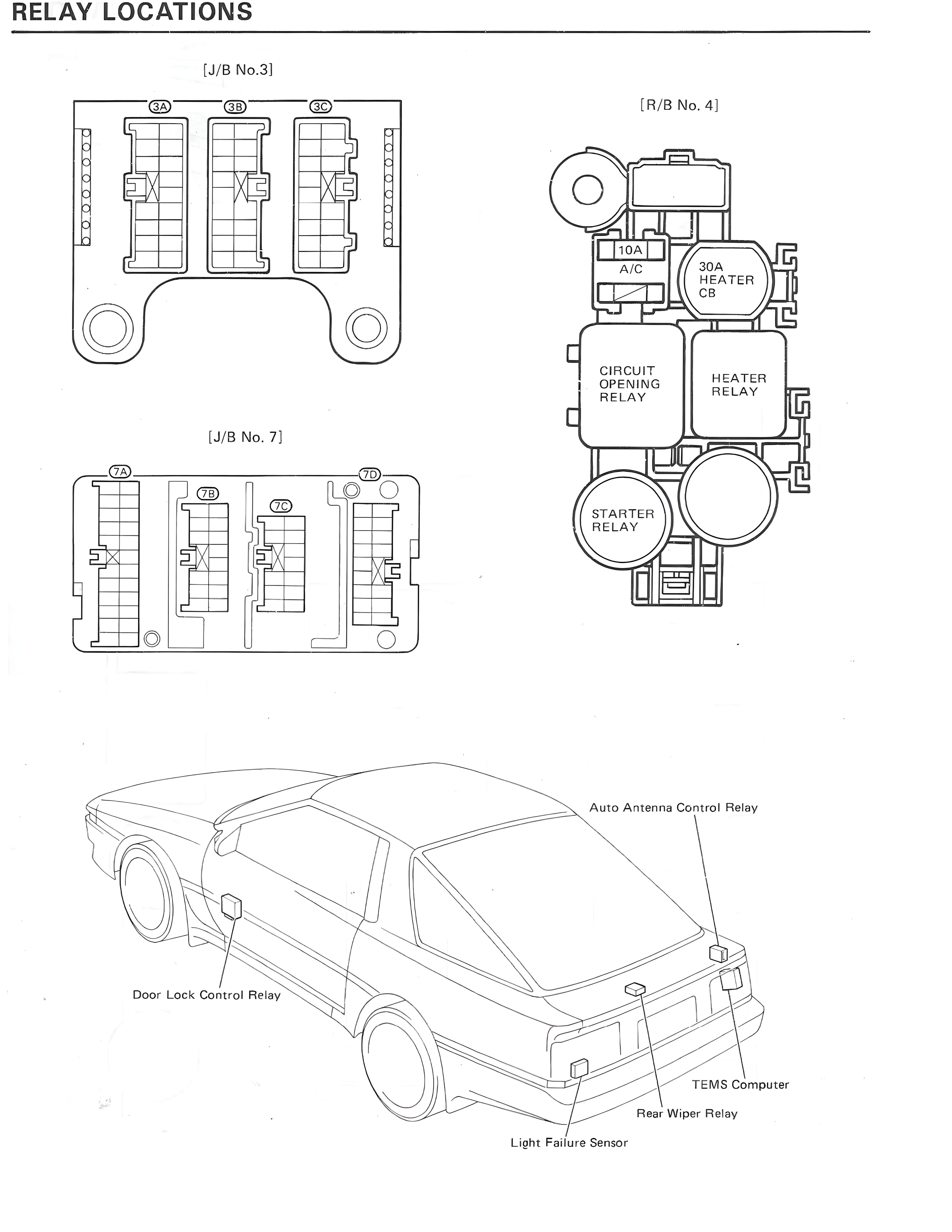

RELAY LOCATIONS [J/B No.3] 3A 3B 3C [R/B No. 4] 10A A/C 30A HEATER CB CIRCUIT OPENING RELAY HEATER RELAY [J/B No. 7] 7A 7B 7C 7D STARTER RELAY Auto Antenna Control Relay Door Lock Control Relay TEMS Computer Rear Wiper Relay Light Failure Sensor
