S10/Back-Up Lights, page 1

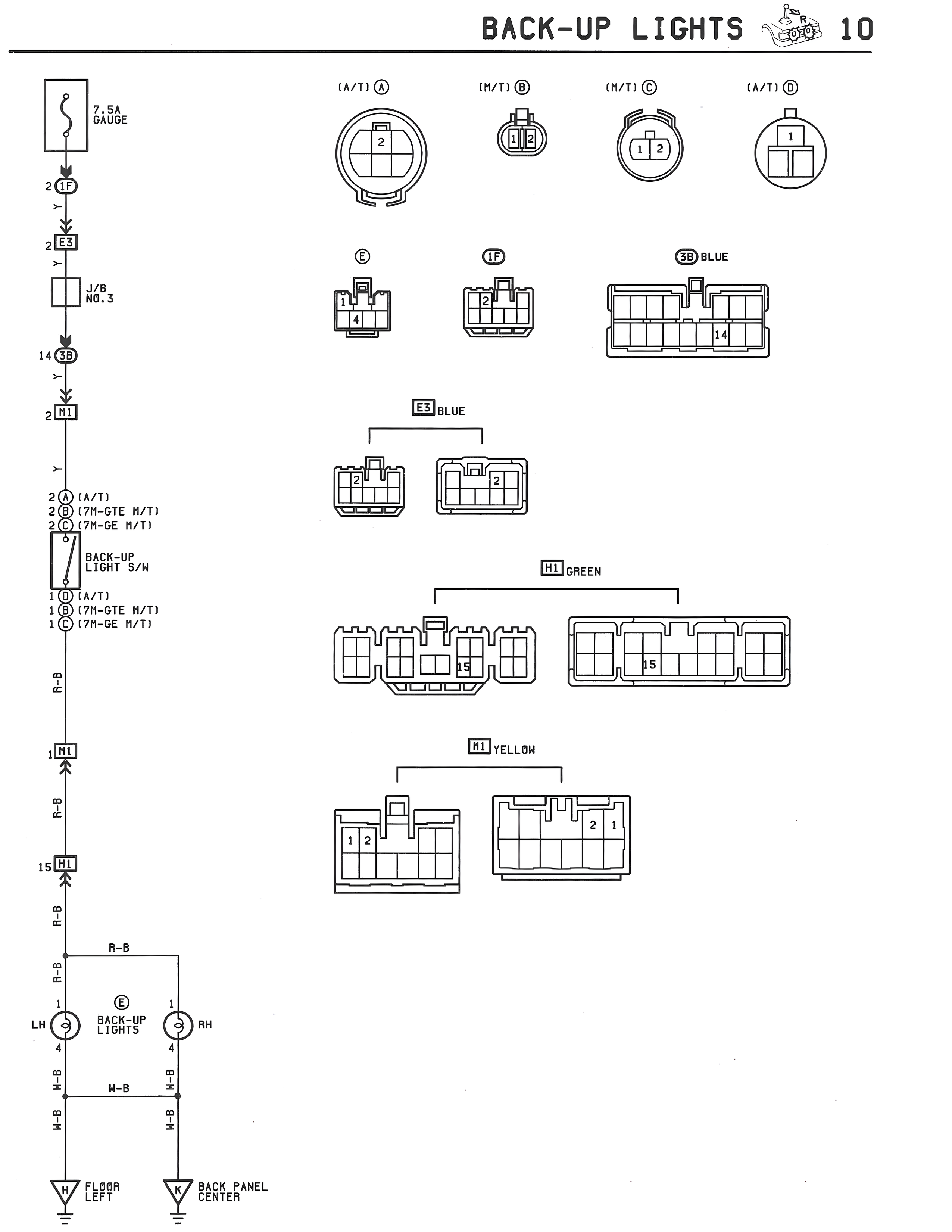

BACK-UP LIGHTS 10

7.5A GAUGE

2 IF
2 E3
J/B NO.3

14 3B

2 H1

2 O (A/T)
2 O (7M-GTE M/T)
2 O (7M-GE M/T)

BACK-UP LIGHT S/M

1 O (A/T)
1 O (7M-GTE M/T)
1 O (7M-GE M/T)

R-B

1 H1

R-B

15 H1

R-B

R-B

N-B

N-B

LH E BACK-UP LIGHTS E RH

FLOOR LEFT

BACK PANEL CENTER

(M/T) A
2
1

(M/T) B
1 1
1

(M/T) C
1 2

(M/T) D
1
1

E
1

IF

3B BLUE
14

E3 BLUE
2

H1 GREEN
15

H1 YELLOW
1 2
2 1
