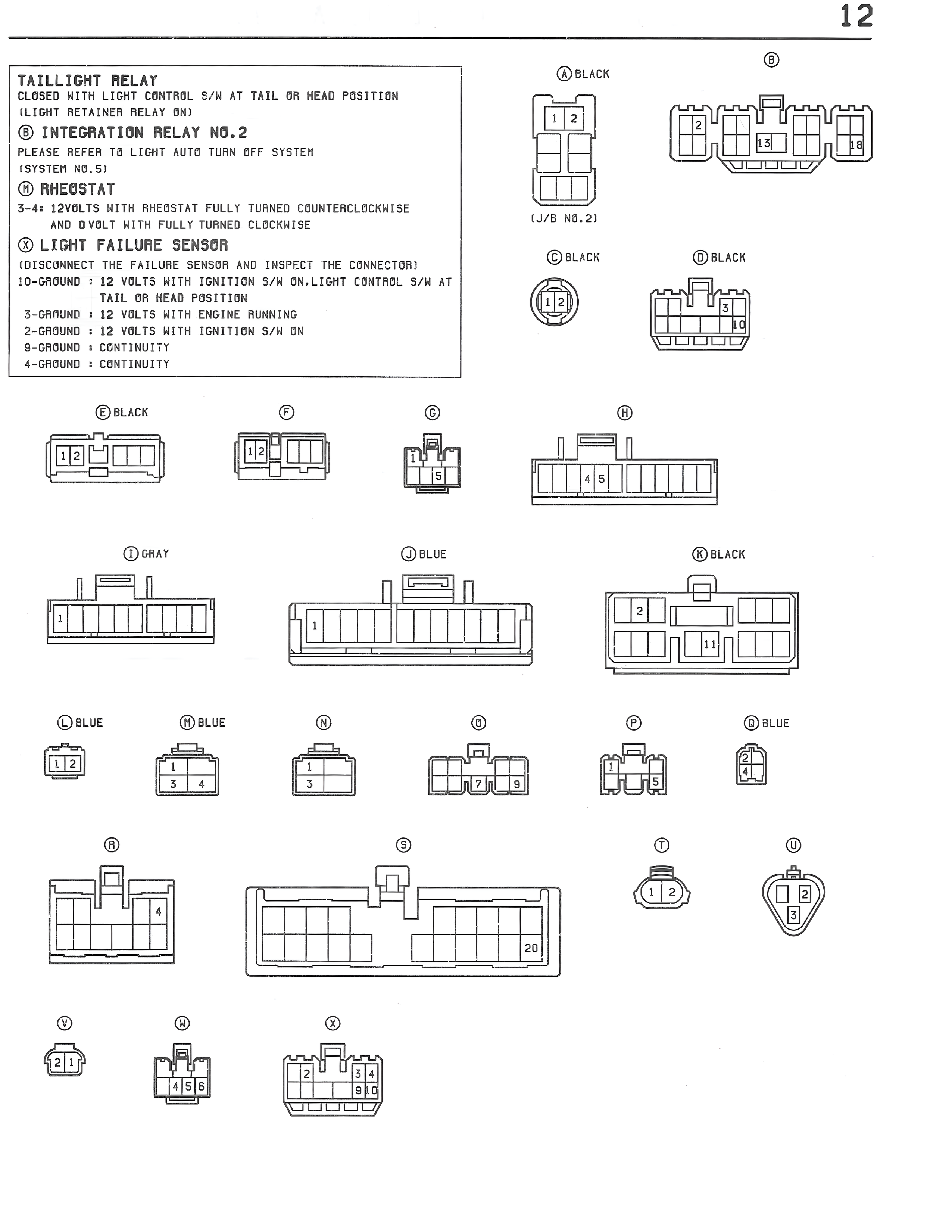

S12/Taillights and Illumination, page 4

12

TAILLIGHT RELAY
CLOSED WITH LIGHT CONTROL S/W AT TAIL OR HEAD POSITION
(LIGHT RETAINER RELAY ON)
② INTEGRATION RELAY NO.2
PLEASE REFER TO LIGHT AUTO TURN OFF SYSTEM
(SYSTEM NO.5)
⑪ RHEOSTAT
3-4: 12VOLTS WITH RHEOSTAT FULLY TURNED COUNTERCLOCKWISE
AND 0 VOLT WITH FULLY TURNED CLOCKWISE
⑩ LIGHT FAILURE SENSOR
(DISCONNECT THE FAILURE SENSOR AND INSPECT THE CONNECTOR)
10-GROUND : 12 VOLTS WITH IGNITION S/W ON,LIGHT CONTROL S/W AT
TAIL OR HEAD POSITION
3-GROUND : 12 VOLTS WITH ENGINE RUNNING
2-GROUND : 12 VOLTS WITH IGNITION S/W ON
9-GROUND : CONTINUITY
4-GROUND : CONTINUITY

⒜ BLACK
1 2
(J/B NO.2)

⒝
2
1
3-4
1-8

⒞ BLACK
1 2

⒟ BLACK
1
3
2
4

⒠ BLACK
1 2

⒡
1 2

⒢
5

⒣
1
5

⒤ GRAY
1

⒥ BLUE
1

⒦ BLACK
2
4

⒧ BLUE
1 2

⒨ BLUE
1
3 4

⒩
1
3

⒪
7-9

⒫

⒬ BLUE
1 2

⒭
4

⒮
20

⒯
1 2

⒰
2
3

⒱
2 1

⒳
4 5 6

⒴
2
5 4
9 6
