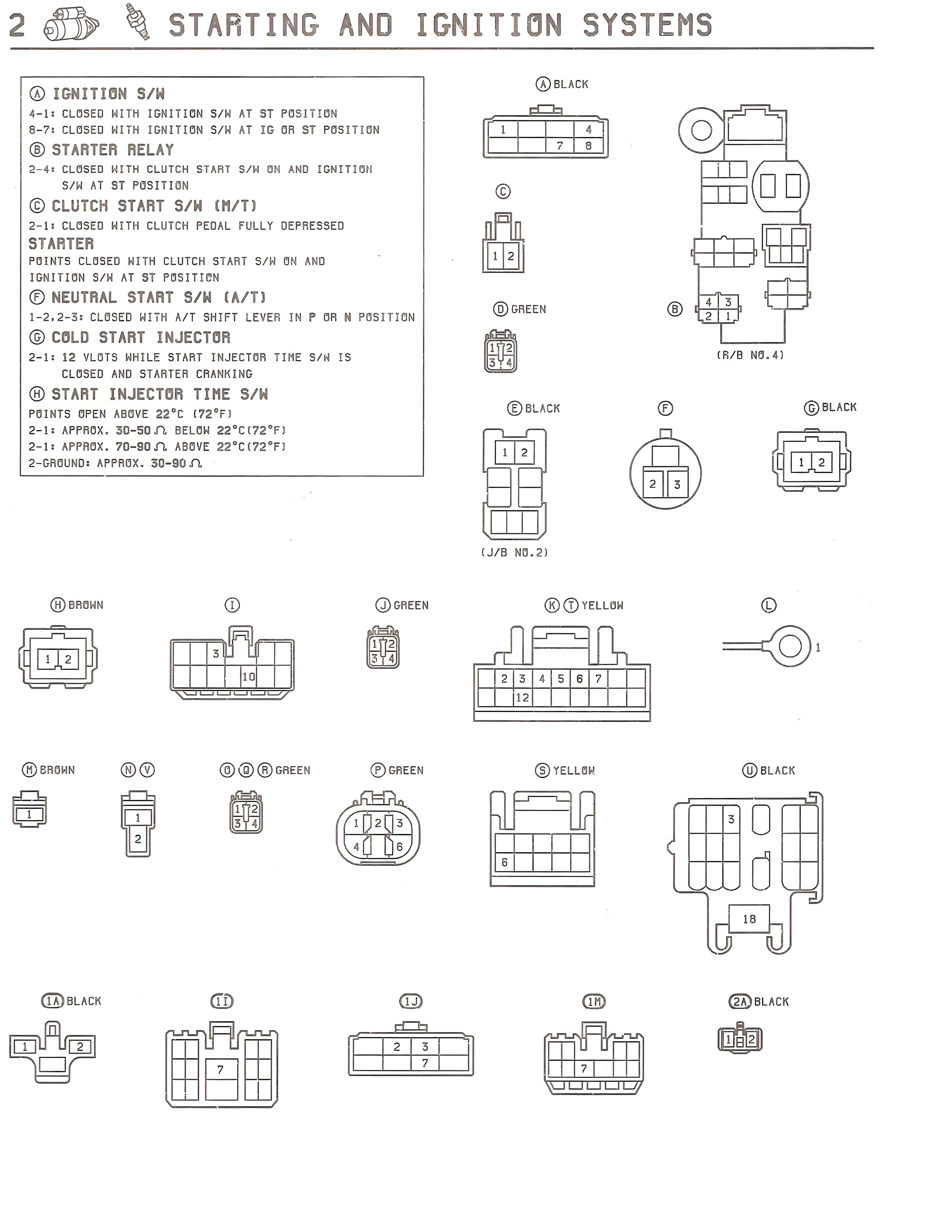

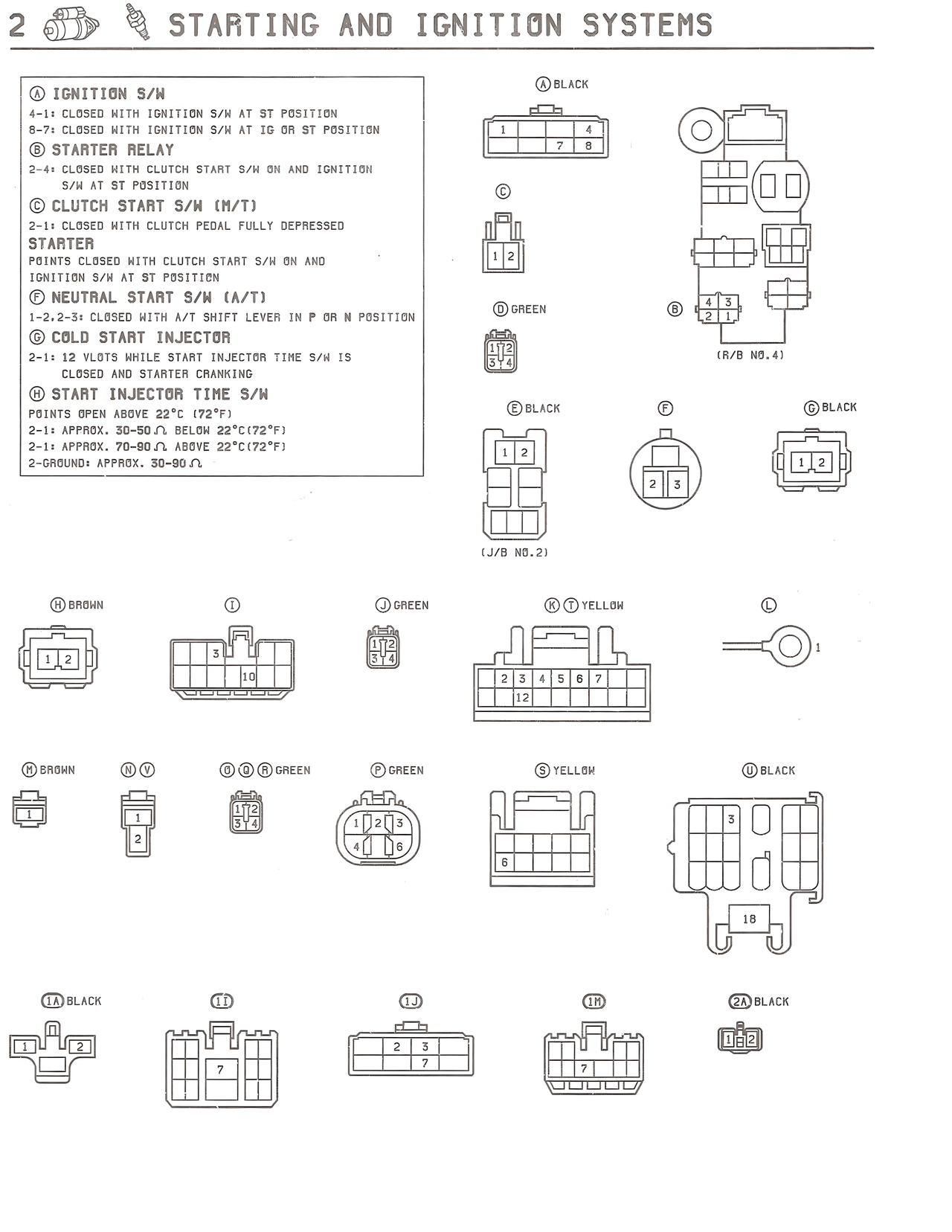

2 STARTING AND IGNITION SYSTEMS
Ⓐ IGNITION S/W
4-1: CLOSED WITH IGNITION S/W AT ST POSITION
8-7: CLOSED WITH IGNITION S/W AT IG OR ST POSITION
Ⓑ STARTER RELAY
2-4: CLOSED WITH CLUTCH START S/W ON AND IGNITION S/W AT ST POSITION
Ⓒ CLUTCH START S/W (M/T)
2-1: CLOSED WITH CLUTCH PEDAL FULLY DEPRESSED
STARTER
POINTS CLOSED WITH CLUTCH START S/W ON AND IGNITION S/W AT ST POSITION
Ⓓ NEUTRAL START S/W (A/T)
1-2,2-3: CLOSED WITH A/T SHIFT LEVER IN P OR N POSITION
Ⓔ COLD START INJECTOR
2-1: 12 VOLTS WHILE START INJECTOR TIME S/W IS CLOSED AND STARTER CRANKING
Ⓕ START INJECTOR TIME S/W
POINTS OPEN ABOVE 22°C (72°F)
2-1: APPROX. 30-50Ω BELOW 22°C(72°F)
2-1: APPROX. 70-90Ω ABOVE 22°C(72°F)
2-GROUND: APPROX. 30-90Ω
ⒶBLACK
[Connector diagram with pins 1,4,7,8]
Ⓒ
[Connector diagram with pins 1,2]
ⒹGREEN
[Connector diagram with pins U2,3U4]
(R/B NO.4)
ⒺBLACK
[Connector diagram with pins 1,2]
(J/B NO.2)
Ⓕ
[Connector diagram with pins 2,3]
ⒼBLACK
[Connector diagram with pins 1,2]
ⒽBROWN
[Connector diagram with pins 1,2]
Ⓘ
[Connector diagram with pins 3,10]
ⒿGREEN
[Connector diagram with pins U2,3U4]
ⓀⓁYELLOW
[Connector diagram with pins 2,3,4,5,6,7,12]
Ⓛ
[Connector diagram with single pin]
ⓂBROWN
[Connector diagram]
ⓃⓁ
[Connector diagram with pins 1,2]
ⓄⓄⒾGREEN
[Connector diagram with pins U2,3U4]
ⓅGREEN
[Connector diagram with pins 1,2,3,4,6]
ⓆYELLOW
[Connector diagram with pin 6]
ⓇBLACK
[Connector diagram with pins 3,18]
ⓈBLACK
[Connector diagram with pins 1,2]
Ⓣ
[Connector diagram with pins 2,7]
Ⓤ
[Connector diagram with pins 2,3,7]
Ⓥ
[Connector diagram with pins 7]
ⓌBLACK
[Connector diagram with pins 1,2]
