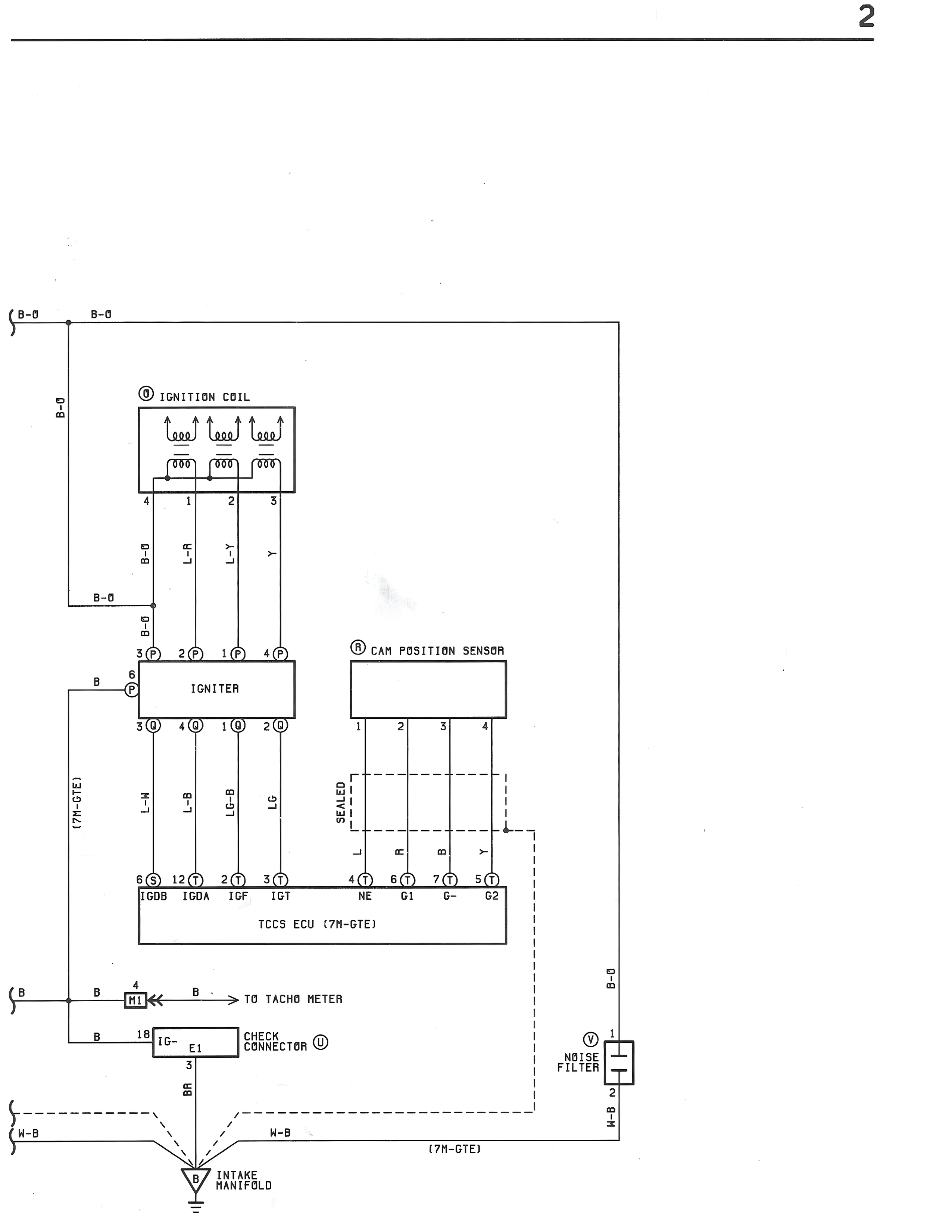

S2/Starting and Ignition Systems, page 2

2

B-0    B-0

⑨ IGNITION COIL
B-0
↑000↓ ↑000↓ ↑000↓
000  000  000
4  1  2  3

B-B  L-R  L-Y  Y

B-0
B-B
3⑮  2⑮  1⑮  4⑮

B    B
G    IGNITER

5⑯  4⑯  1⑯  2⑯

(7M-GTE)
L-Y  L-B  LG-B  LG

6⑯ 12⑰  2⑰  3⑰
IGDB IGDA IGF  IGT

TCCS ECU (7M-GTE)

B    B    B → TO TACHO METER
D1←
      1B
         IG-  E1  CHECK CONNECTOR ⑪
         3
         B-R

W-B            W-B

⑨ CAM POSITION SENSOR

1  2  3  4

SEALER
L  R  B  Y

4⑰  6⑰  7⑰  5⑰
NE  G1  G-  G2

B-B

⑪ NOISE FILTER
1
2
W-B

(7M-GTE)

∇ INTAKE MANIFOLD
⏚
