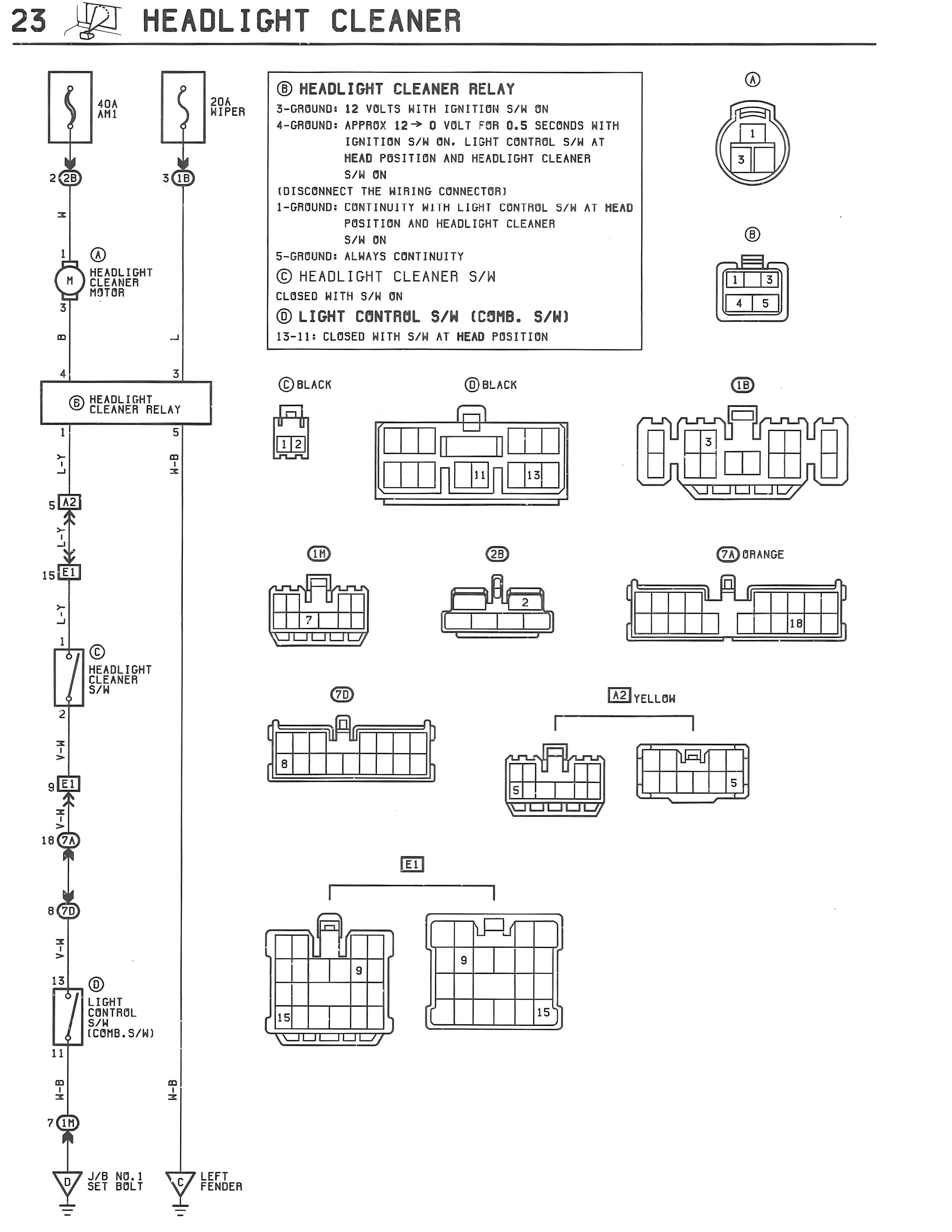

S23/Headlight Cleaner, page 1

23 HEADLIGHT CLEANER

40A AM1
20A WIPER
2 2B
3 1D
A HEADLIGHT CLEANER MOTOR
4 3
B

B HEADLIGHT CLEANER RELAY 3-GROUND: 12 VOLTS WITH IGNITION S/W ON 4-GROUND: APPROX 12→0 VOLTS IN 0.5 SECONDS WITH IGNITION S/W ON, LIGHT CONTROL S/W AT HEAD POSITION AND HEADLIGHT CLEANER S/W ON
[DISCONNECT THE WIRING CONNECTOR] 1-GROUND: CONTINUITY WITH LIGHT CONTROL S/W AT HEAD POSITION AND HEADLIGHT CLEANER S/W ON
5-GROUND: ALWAYS CONTINUITY
C HEADLIGHT CLEANER S/W CLOSED WITH S/W ON
D LIGHT CONTROL S/W (COMB. S/W) 13-11: CLOSED WITH S/W AT HEAD POSITION

A
B

C BLACK
D BLACK
1B
2B
7A ORANGE
1D
7D
12 YELLOW

E1

D LIGHT CONTROL S/W (COMB.S/W)

B-W
B-W

1 5
B-R
W-R
5 12
W-Y
1S E1
L-Y
9 C HEADLIGHT CLEANER S/W 2
L-Y
9 E1
W-Y
18 7A
L-Y
8 7D
W-Y
13
L-Y 11
B-W
B-W
7 1D

1/B NO.1 SET BOLT
LEFT FENDER
