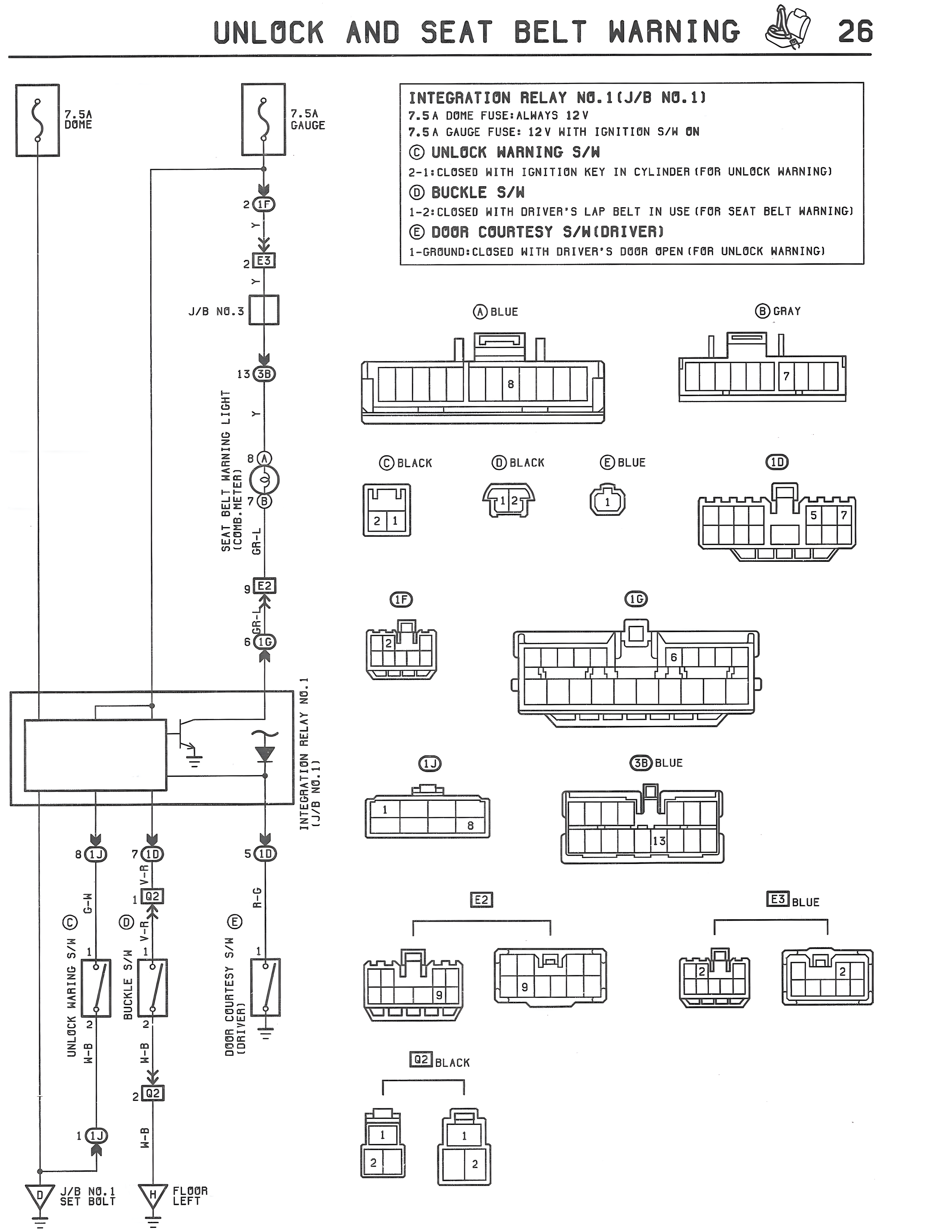

S26/Unlock and Seat Belt Warning, page 1

UNLOCK AND SEAT BELT WARNING 26

2.5A DOME
7.5A GAUGE

INTEGRATION RELAY NO.1(J/B NO.1)
7.5A DOME FUSE:ALWAYS 12V
7.5A GAUGE FUSE:12V WITH IGNITION S/W ON
② UNLOCK WARNING S/W
2-1:CLOSED WITH IGNITION KEY IN CYLINDER (FOR UNLOCK WARNING)
⑧ BUCKLE S/W
1-2:CLOSED WITH DRIVER'S LAP BELT IN USE (FOR SEAT BELT WARNING)
⑤ DOOR COURTESY S/W(DRIVER)
1-GROUND:CLOSED WITH DRIVER'S DOOR OPEN (FOR UNLOCK WARNING)

2 IF
2 E3
J/B NO.3

13 3B

IGNT

8 A
SEAT BELT WARNING LIGHT
GR-W
7 B

9 E2

8 1D

8 1J 7 1D 5 1D

1 D2

② UNLOCK WARNING S/W ⑧ BUCKLE S/W ⑤ DOOR COURTESY S/W(DRIVER)
H-B 2 1 H-B 1 2 H-B 1 2

1 1J

J/B NO.1 SEAT BOLT FLOOR LEFT

2 D2

A BLUE
8

C BLACK
E BLUE

D BLACK
1 2

B GRAY
7

1D
5 7

IF
2

1G
6

1J
1 8

5B BLUE
13

E2

E3 BLUE

9
9
21

D2 BLACK
1
2
1
2

INTEGRATION RELAY NO.1 I/B NO.1
