S27/Super Monitor, page 2

27

15A
TAIL

G 10

B

18
LSW

E2                    DG                    0/D2
15                    6                     3                     8

L4/Y1                                      L4/Y1

                                           P-G
                                           L-G

W-B        W-B        P-B        P-B

           13         5          1          5
           ECT        0/D2       0/D        LP
                                 MAIN
                                 SW
           ECT ECU (A/T)          (A/T)
                                 3

8 10

W-B

J/B NO.1
SET BOLT

RA010
LEFT

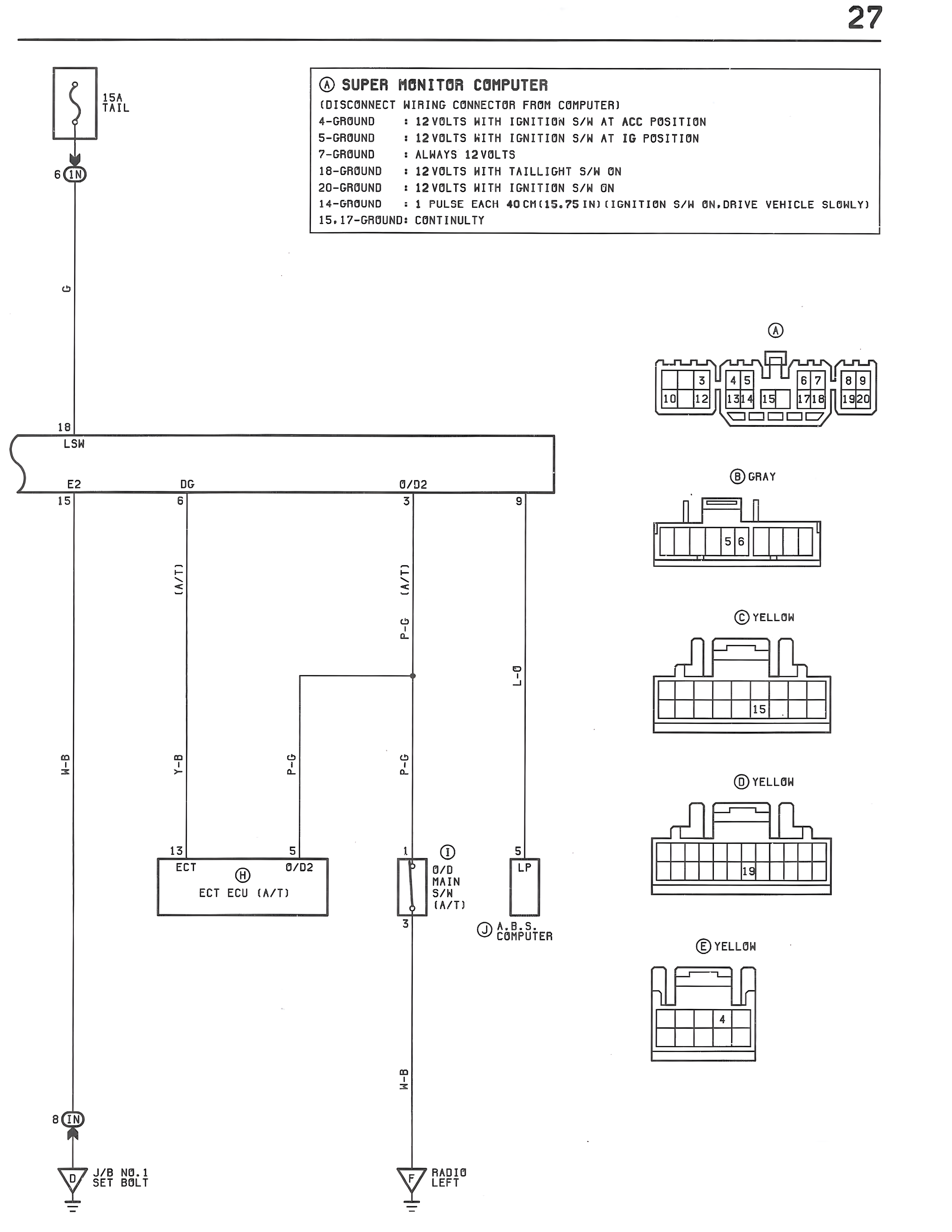

A SUPER MONITOR COMPUTER
(DISCONNECT WIRING CONNECTOR FROM COMPUTER)
4-GROUND      + 12 VOLTS WITH IGNITION S/W AT ACC POSITION
5-GROUND      + 12 VOLTS WITH IGNITION S/W AT IG POSITION
7-GROUND      + ALWAYS 12 VOLTS
18-GROUND     + 12 VOLTS WITH TAILLIGHT S/W ON
20-GROUND     + 12 VOLTS WITH IGNITION S/W ON
14-GROUND     + 1 PULSE EACH 40CM(15.75IN)(IGNITION S/W ON.DRIVE VEHICLE SLOWLY)
15,17-GROUND CONTINUITY

A

1 2 3 4 5 6 7 8 9
10 12 13 14 15 17 18 19 20

B GRAY

5 6

C YELLOW

15

D YELLOW

19

E YELLOW

4

J A.B.S.
COMPUTER
