S28/Horns1 / 1

Horns page 1

100%

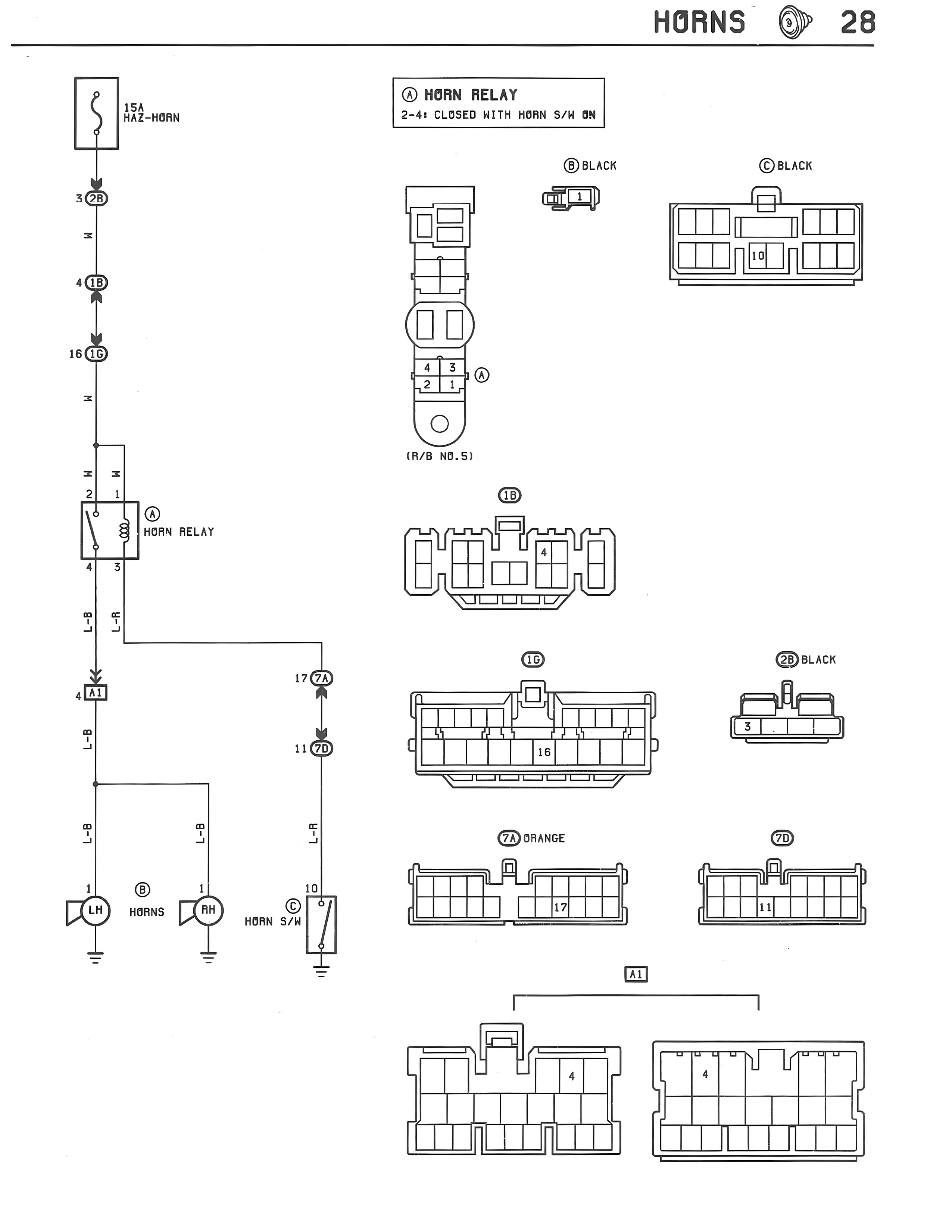

HORNS 28 15A HA2-HORN A HORN RELAY 2-41 CLOSED WITH HORN S/W ON B BLACK C BLACK 3 2D 4 1B 18 1C A HORN RELAY (R/B NO.5) 1B 1C 2D BLACK 7A ORANGE 7D 4 A1 B HORNS LH C HORN S/W RH A1 1 LH HORNS 1 RH HORN S/W 10 7 11 2D 17 7A 11 7D 4
