7

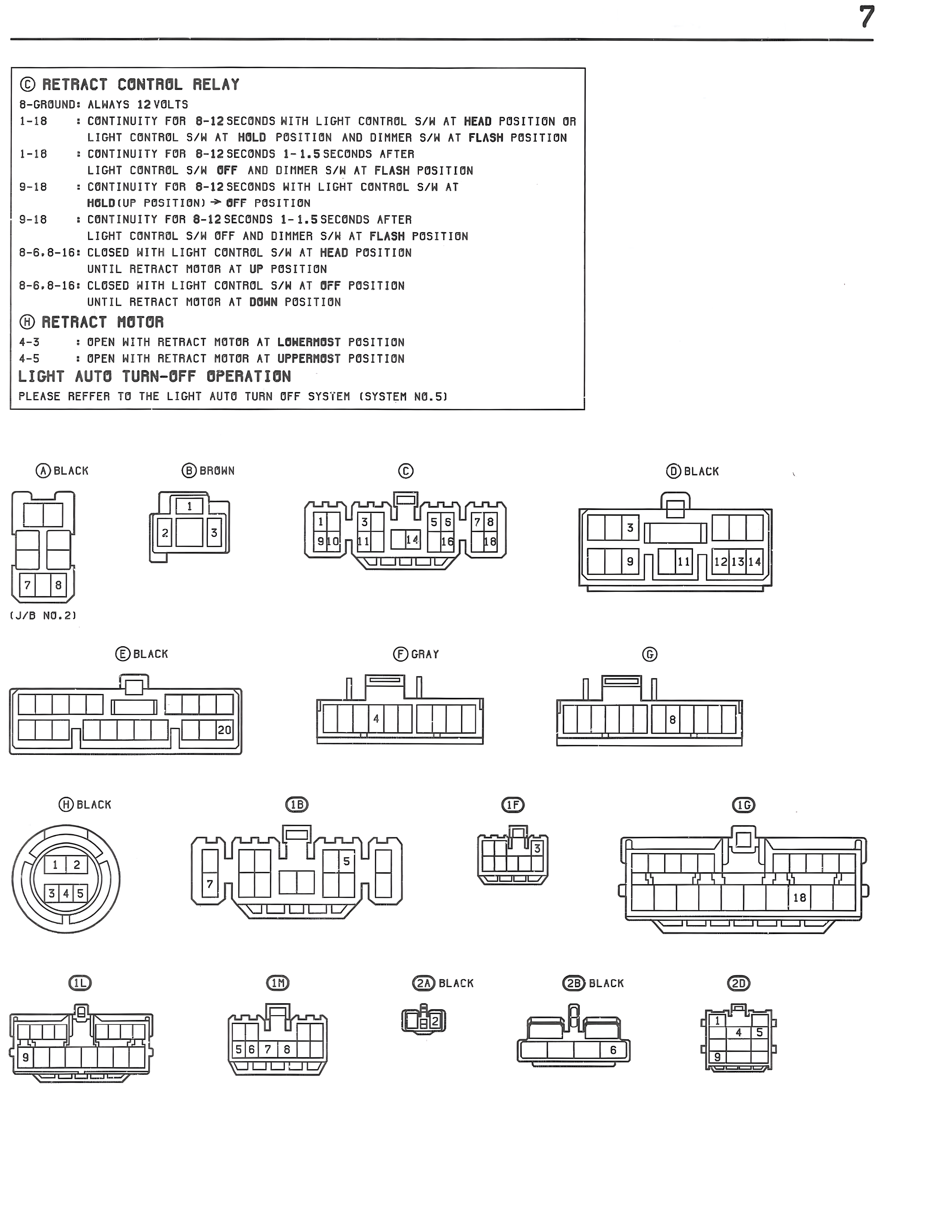

Ⓒ RETRACT CONTROL RELAY
8-GROUND: ALWAYS 12 VOLTS
1-18 : CONTINUITY FOR 8-12 SECONDS WITH LIGHT CONTROL S/W AT HEAD POSITION OR LIGHT CONTROL S/W AT HOLD POSITION AND DIMMER S/W AT FLASH POSITION
1-18 : CONTINUITY FOR 8-12 SECONDS 1-1.5 SECONDS AFTER LIGHT CONTROL S/W OFF AND DIMMER S/W AT FLASH POSITION
9-18 : CONTINUITY FOR 8-12 SECONDS WITH LIGHT CONTROL S/W AT HOLD(UP POSITION) -> OFF POSITION
9-18 : CONTINUITY FOR 8-12 SECONDS 1-1.5 SECONDS AFTER LIGHT CONTROL S/W OFF AND DIMMER S/W AT FLASH POSITION
8-6,8-16: CLOSED WITH LIGHT CONTROL S/W AT HEAD POSITION UNTIL RETRACT MOTOR AT UP POSITION
8-6,8-18: CLOSED WITH LIGHT CONTROL S/W AT OFF POSITION UNTIL RETRACT MOTOR AT DOWN POSITION
Ⓓ RETRACT MOTOR
4-5 : OPEN WITH RETRACT MOTOR AT LOWERMOST POSITION
4-5 : OPEN WITH RETRACT MOTOR AT UPPERMOST POSITION
LIGHT AUTO TURN-OFF OPERATION
PLEASE REFFER TO THE LIGHT AUTO TURN OFF SYSTEM (SYSTEM NO.5)
ⒶBLACK ⒷBROWN Ⓒ ⒹBLACK
(J/B NO.2)
ⒺBLACK ⒻGRAY Ⓖ
20
ⒽBLACK ⒾⒷ ⒾⒹ ⒾⒼ
1 2
3 4 5
1
2 3
1 3 4 5 6 7 8
9 10 11 12 13 14
3 9 10 11 12 13 14
4
9
7 5
18
ⒾⒾ ⒾⒽ ⒾⒶ BLACK ⒾⒷ BLACK ⒾⒹ
1 2
5 6 7 8
1 6
3 4 5
