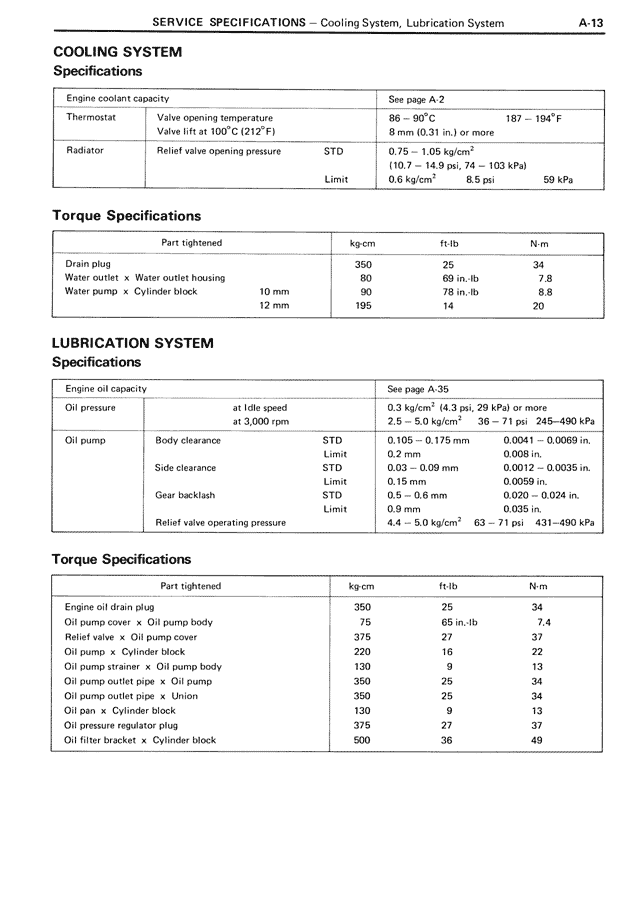

COOLING SYSTEM
Specifications
Engine coolant capacity See page A-2
Thermostat Valve opening temperature 86 – 90°C 187 – 194°F
Valve lift at 100°C (212°F) 8 mm (0.31 in.) or more
Radiator Relief valve opening pressure STD 0.75 – 1.05 kg/cm²
(11 – 15 psi, 74 – 103 kPa)
Limit 0.6 kg/cm² 8.5 psi 59 kPa
Torque Specifications
Part tightened kg·cm ft·lb N·m
Drain plug 350 25 34
Water outlet × Water outlet housing 80 69 in.·lb 7.8
Water pump × Cylinder block 10 mm 90 78 in.·lb 8.8
12 mm 195 14 20
LUBRICATION SYSTEM
Specifications
Engine oil capacity See page A-35
Oil pressure at Idle speed 0.3 kg/cm² (4.3 psi, 29 kPa) or more
at 3,000 rpm 2.5 – 5.0 kg/cm 36 – 71 psi 245–490 kPa
Oil pump Body clearance STD 0.105 – 0.175 mm 0.0041 – 0.0069 in.
Limit 0.2 mm 0.008 in.
Side clearance STD 0.03 – 0.09 mm 0.0012 – 0.0035 in.
Limit 0.15 mm 0.0059 in.
Gear backlash STD 0.5 – 0.8 mm 0.020 – 0.024 in.
Limit 0.9 mm 0.035 in.
Relief valve operating pressure 4.4 – 5.0 kg/cm² 63 – 71 psi 431–490 kPa
Torque Specifications
Part tightened kg·cm ft·lb N·m
Engine oil drain plug 350 25 34
Oil pump cover × Oil pump body 75 65 in.·lb 7.4
Relief valve × Oil pump cover 375 27 37
Oil pump × Cylinder block 220 16 22
Oil pump strainer × Oil pump body 130 9 13
Oil pump outlet pipe × Oil pump 350 25 34
Oil pump outlet pipe × Union 350 25 34
Oil pan × Cylinder block 130 9 13
Oil pressure regulator plug 375 27 37
Oil filter bracket × Cylinder block 500 36 49
