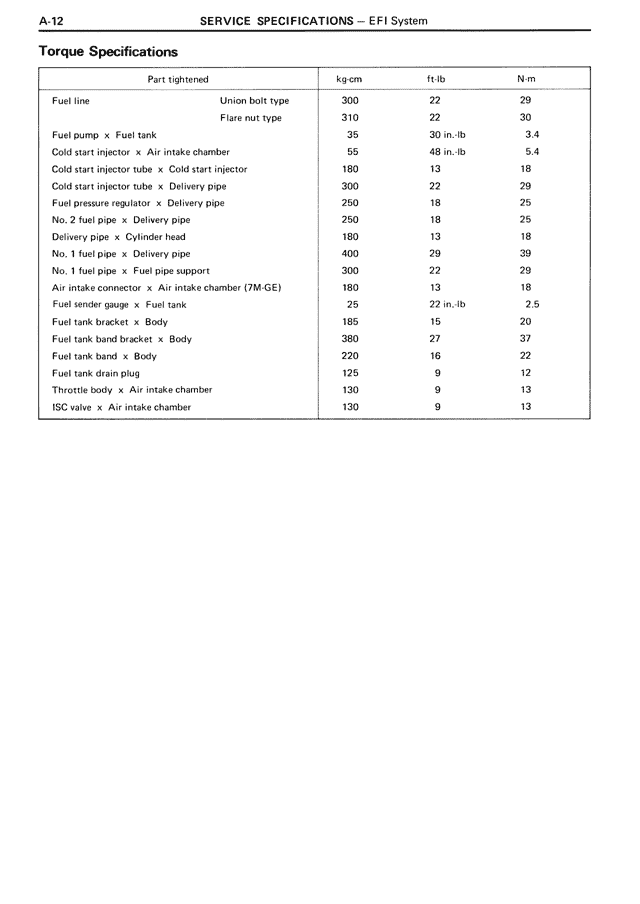

Torque Specifications
Part tightened kg·cm ft·lb N·m
Fuel line Union bolt type 300 22 29
Flare nut type 310 22 30
Fuel pump × Fuel tank 35 30·in·lb 3.4
Cold start injector × Air intake chamber 55 48·in·lb 5.4
Cold start injector tube × Cold start injector 180 13 18
Cold start injector tube × Delivery pipe 300 22 29
Fuel pressure regulator × Delivery pipe 250 18 25
No. 2 fuel pipe × Delivery pipe 250 18 25
Delivery pipe × Cylinder head 180 13 18
No. 1 fuel pipe × Delivery pipe 400 29 39
No. 1 fuel pipe × Fuel filter support 300 22 29
Air intake connector × Air intake chamber (7M-GE) 180 13 18
Fuel sender gauge × Fuel tank 25 22·in·lb 2.5
Fuel tank bracket × Body 185 15 20
Fuel tank band bracket × Body 380 27 37
Fuel tank band × Body 220 16 22
Fuel tank drain plug 125 9 12
Throttle body × Air intake chamber 130 9 13
ISC valve × Air intake chamber 130 9 13
