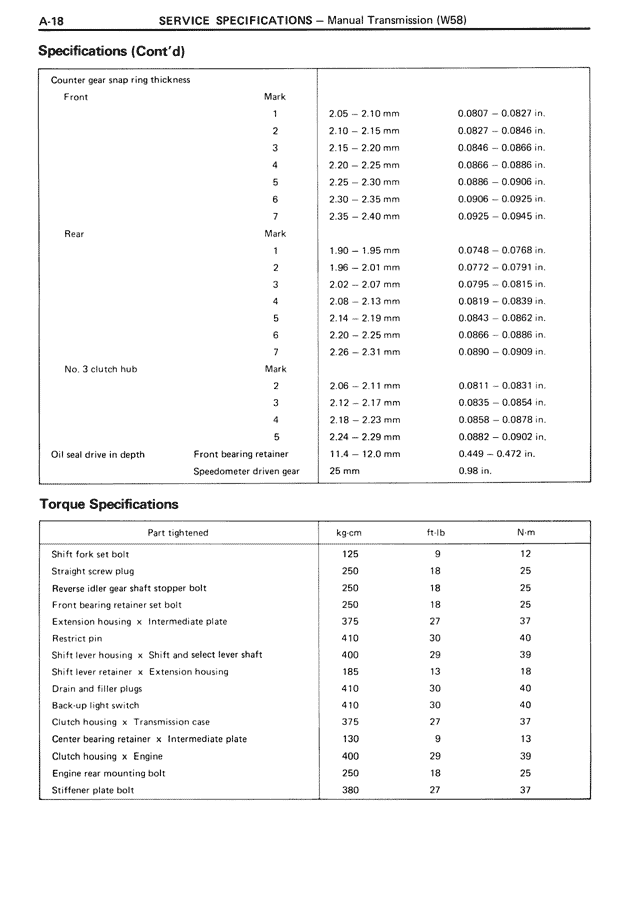

Specifications (Cont'd)
Counter gear snap ring thickness
Front
Mark
1 2.05 - 2.10 mm 0.0807 - 0.0827 in.
2 2.10 - 2.15 mm 0.0827 - 0.0846 in.
3 2.15 - 2.20 mm 0.0846 - 0.0866 in.
4 2.20 - 2.25 mm 0.0866 - 0.0886 in.
5 2.25 - 2.30 mm 0.0886 - 0.0906 in.
6 2.30 - 2.35 mm 0.0906 - 0.0925 in.
7 2.35 - 2.40 mm 0.0925 - 0.0945 in.
Rear
Mark
1 1.90 - 1.95 mm 0.0748 - 0.0768 in.
2 1.96 - 2.01 mm 0.0772 - 0.0791 in.
3 2.02 - 2.07 mm 0.0795 - 0.0815 in.
4 2.08 - 2.13 mm 0.0819 - 0.0839 in.
5 2.14 - 2.19 mm 0.0843 - 0.0862 in.
6 2.20 - 2.25 mm 0.0866 - 0.0886 in.
7 2.26 - 2.31 mm 0.0890 - 0.0909 in.
No. 3 clutch hub
Mark
2 2.06 - 2.11 mm 0.0811 - 0.0831 in.
3 2.12 - 2.17 mm 0.0835 - 0.0854 in.
4 2.18 - 2.23 mm 0.0858 - 0.0878 in.
5 2.24 - 2.29 mm 0.0882 - 0.0902 in.
Oil seal drive in depth Front bearing retainer 11.4 - 12.0 mm 0.449 - 0.472 in.
Speedometer driven gear 25 mm
Torque Specifications
Part tightened kg·cm ft·lb N·m
Shift fork set bolt 125 9 13
Straight screw plug 250 18 25
Reverse idler gear shaft stopper bolt 250 18 25
Front bearing retainer set bolt 250 18 25
Extension housing × Intermediate plate 375 27 37
Restrict pin 410 30 40
Shift lever housing × Shift and select lever shaft 400 29 39
Shift lever retainer × Extension housing 185 13 18
Drain and filler plugs 410 30 40
Back-up light switch 410 30 40
Clutch housing × Transmission case 375 27 37
Center bearing retainer × Intermediate plate 130 9 13
Clutch housing × Engine 400 29 39
Engine rear mounting bolt 250 18 25
Stiffener plate bolt 380 27 37
