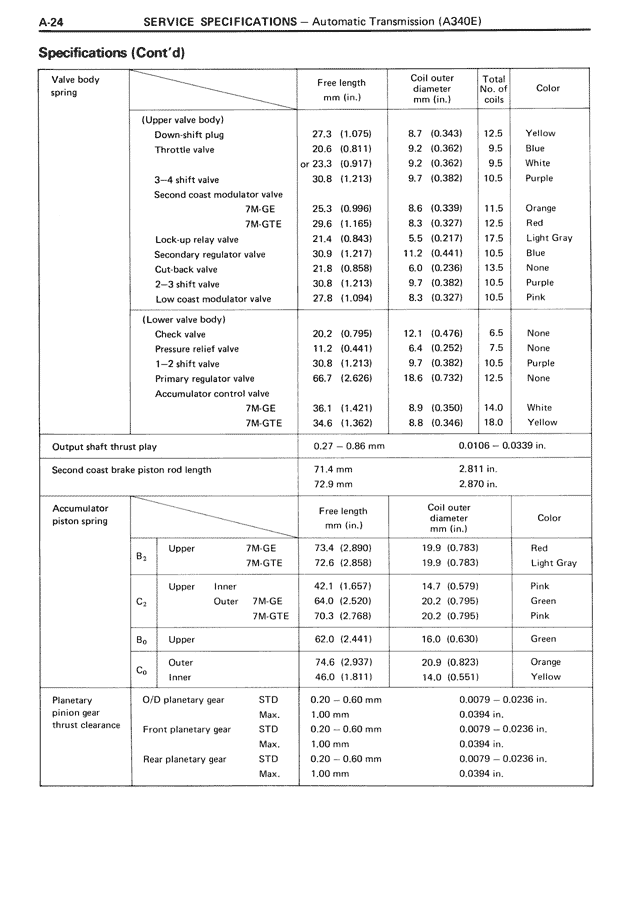

Specifications (Cont'd)
Valve body spring
(Upper valve body)
Down shift plug
Throttle valve
3-4 shift valve
Second coast modulator valve
7M-GE
7M-GTE
Lock-up relay valve
Secondary regulator valve
Cut-back valve
2-3 shift valve
Low coast modulator valve
(Lower valve body)
Check valve
Pressure relief valve
1-2 shift valve
Primary regulator valve
Accumulator control valve
7M-GE
7M-GTE
Free length
mm (in.)
27.3 (1.075)
20.6 (0.811)
or 23.3 (0.917)
30.8 (1.213)
25.3 (0.996)
29.6 (1.165)
21.4 (0.843)
30.9 (1.217)
21.8 (0.858)
30.8 (1.213)
27.8 (1.094)
20.2 (0.795)
11.2 (0.441)
30.8 (1.213)
66.7 (2.626)
36.1 (1.421)
34.6 (1.362)
Coil outer
diameter
mm (in.)
8.7 (0.343)
9.2 (0.362)
9.2 (0.362)
9.7 (0.382)
8.6 (0.339)
8.3 (0.327)
5.5 (0.217)
11.2 (0.441)
6.0 (0.236)
9.7 (0.382)
8.3 (0.327)
12.1 (0.476)
6.4 (0.252)
9.7 (0.382)
18.6 (0.732)
8.9 (0.350)
8.8 (0.346)
Total
No. of
coils
12.5
9.5
9.5
10.5
11.5
12.5
17.5
10.5
13.5
10.5
10.5
6.5
7.5
10.5
12.5
14.0
18.0
Color
Yellow
Blue
White
Purple
Orange
Red
Light Gray
Blue
None
Purple
Pink
None
None
Purple
None
White
Yellow
Output shaft thrust play
0.27 — 0.86 mm
0.0106 — 0.0339 in.
Second coast brake piston rod length
71.4 mm
72.9 mm
2.811 in.
2.870 in.
Accumulator
piston spring
B₂
Upper
7M-GE
7M-GTE
Free length
mm (in.)
73.4 (2.890)
72.6 (2.858)
Coil outer
diameter
mm (in.)
19.9 (0.783)
19.9 (0.783)
Color
Red
Light Gray
C₂
Upper
Inner
Outer
7M-GE
7M-GTE
42.1 (1.657)
64.0 (2.520)
70.3 (2.768)
14.7 (0.579)
20.2 (0.795)
20.2 (0.795)
Pink
Green
Pink
B₀
Upper
67.0 (2.441)
16.0 (0.630)
Green
C₀
Outer
Inner
74.6 (2.937)
46.0 (1.811)
20.9 (0.823)
14.0 (0.551)
Orange
Yellow
Planetary
pinion gear
thrust clearance
O/D planetary gear
STD
Max.
0.20 — 0.60 mm
1.00 mm
0.0079 — 0.0236 in.
0.0394 in.
Front planetary gear
STD
Max.
0.20 — 0.60 mm
1.00 mm
0.0079 — 0.0236 in.
0.0394 in.
Rear planetary gear
STD
Max.
0.20 — 0.60 mm
1.00 mm
0.0079 — 0.0236 in.
0.0394 in.
