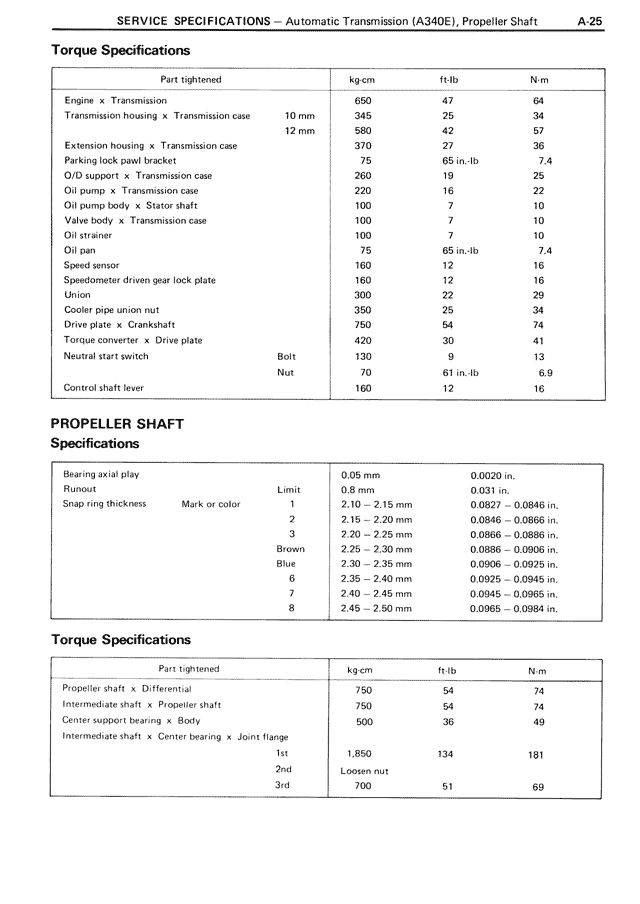

SERVICE SPECIFICATIONS - Automatic Transmission (A340E), Propeller Shaft A-25
Torque Specifications
Part tightened kg·cm ft·lb N·m
Engine × Transmission 650 47 64
Transmission housing × Transmission case 10 mm 345 25 34
12 mm 580 42 57
Extension housing × Transmission case 370 27 36
Parking lock pawl bracket 75 65 in.·lb 7.4
O/D support × Transmission case 260 19 25
Oil pump × Transmission case 220 16 22
Oil pump body × Stator shaft 100 7 10
Valve body × Transmission case 100 7 10
Oil strainer 100 7 10
Oil pan 75 65 in.·lb 7.4
Speed sensor 160 12 16
Speedometer driven gear lock plate 160 12 16
Union 300 22 29
Cooler pipe union nut 350 25 34
Drive plate × Crankshaft 750 54 74
Torque converter × Drive plate 420 30 41
Neutral start switch Bolt 130 9 13
Nut 70 61 in.·lb 6.9
Control shaft lever 160 12 16
PROPELLER SHAFT
Specifications
Bearing axial play 0.05 mm 0.0020 in.
Limit 0.8 mm 0.031 in.
Snap ring thickness Mark or color
1 2.10 - 2.15 mm 0.0827 - 0.0846 in.
2 2.15 - 2.20 mm 0.0846 - 0.0866 in.
3 2.20 - 2.25 mm 0.0866 - 0.0886 in.
Brown 2.25 - 2.30 mm 0.0886 - 0.0906 in.
Blue 2.30 - 2.35 mm 0.0906 - 0.0925 in.
6 2.35 - 2.40 mm 0.0925 - 0.0945 in.
7 2.40 - 2.45 mm 0.0945 - 0.0965 in.
8 2.45 - 2.50 mm 0.0965 - 0.0984 in.
Torque Specifications
Part tightened kg·cm ft·lb N·m
Propeller shaft × Differential 750 54 74
Intermediate shaft × Propeller shaft 750 54 74
Center support bearing × Body 500 36 49
Intermediate shaft × Center bearing × Joint flange
1st 1,850 134 181
2nd Loosen nut
3rd 700 51 69
