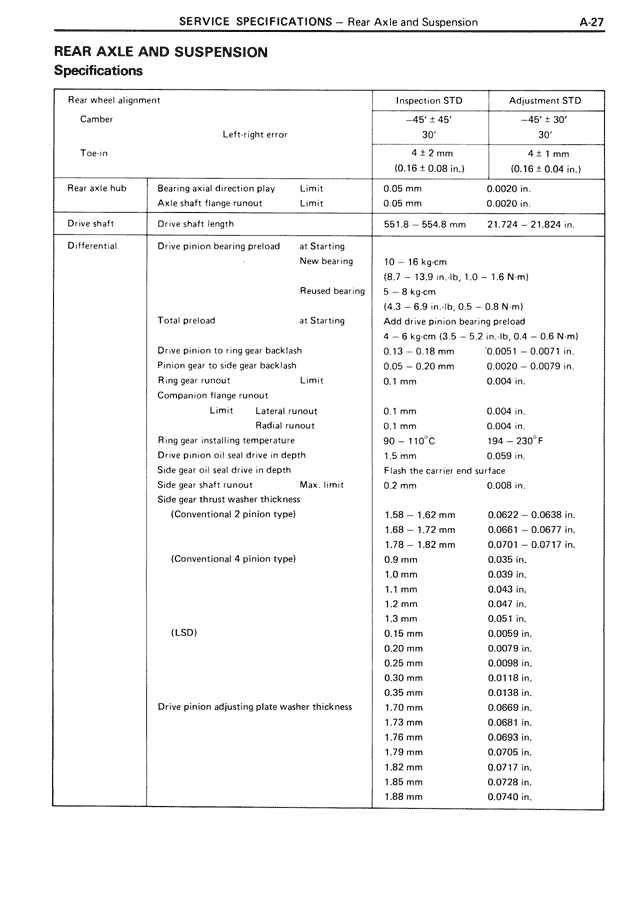

REAR AXLE AND SUSPENSION
Specifications
Rear wheel alignment
Inspection STD Adjustment STD
Camber
Left-right error -45' ± 45' -45' ± 30'
30' 30'
Toe-in 4 ± 2 mm 4 ± 1 mm
(0.16 ± 0.08 in.) (0.16 ± 0.04 in.)
Rear axle hub Bearing axial direction play Limit 0.05 mm 0.0020 in.
Axle shaft flange runout Limit 0.05 mm 0.0020 in.
Drive shaft Drive shaft length 551.8 — 554.8 mm 21.724 — 21.824 in.
Differential Drive pinion bearing preload at Starting
New bearing 10 — 16 kg·cm
(8.7 — 13.9 in.·lb, 1.0 — 1.6 N·m)
Reused bearing 5 — 8 kg·cm
(4.3 — 6.9 in.·lb, 0.5 — 0.8 N·m)
Total preload at Starting Add drive pinion bearing preload
4 — 6 kg·cm (3.5 — 5.2 in.·lb, 0.4 — 0.6 N·m)
Drive pinion to ring gear backlash 0.13 — 0.18 mm 0.0051 — 0.0071 in.
Pinion gear to side gear backlash 0.05 — 0.20 mm 0.0020 — 0.0079 in.
Ring gear runout Limit 0.1 mm 0.004 in.
Companion flange runout
Axial Lateral runout 0.1 mm 0.004 in.
Radial runout 0.1 mm 0.004 in.
Ring gear installing temperature 90 — 110°C 194 — 230°F
Drive pinion oil seal drive in depth 1.5 mm 0.059 in.
Side gear oil seal drive in depth Flush the carrier end surface
Side gear shaft runout Max. limit 0.2 mm 0.008 in.
Side gear thrust washer thickness
(Conventional 2 pinion type) 1.58 — 1.62 mm 0.0622 — 0.0638 in.
1.68 — 1.72 mm 0.0661 — 0.0677 in.
1.78 — 1.82 mm 0.0701 — 0.0717 in.
(Conventional 4 pinion type) 0.9 mm 0.035 in.
1.0 mm 0.039 in.
1.1 mm 0.043 in.
1.2 mm 0.047 in.
1.3 mm 0.051 in.
(LSD) 0.15 mm 0.0059 in.
0.20 mm 0.0079 in.
0.25 mm 0.0098 in.
0.30 mm 0.0118 in.
0.35 mm 0.0138 in.
Drive pinion adjusting plate washer thickness 1.70 mm 0.0669 in.
1.73 mm 0.0681 in.
1.76 mm 0.0693 in.
1.79 mm 0.0705 in.
1.82 mm 0.0717 in.
1.85 mm 0.0728 in.
1.88 mm 0.0740 in.
