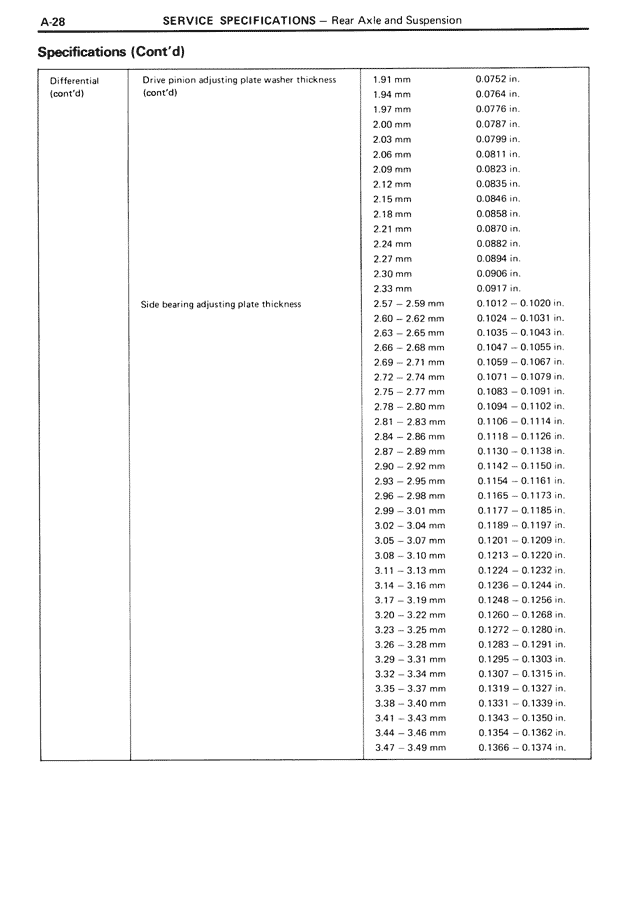

Specifications (Cont'd) Differential (cont'd) Drive pinion adjusting plate washer thickness (cont'd) 1.91 mm 0.0752 in. 1.94 mm 0.0764 in. 1.97 mm 0.0776 in. 2.00 mm 0.0787 in. 2.03 mm 0.0799 in. 2.06 mm 0.0811 in. 2.09 mm 0.0823 in. 2.12 mm 0.0835 in. 2.15 mm 0.0846 in. 2.18 mm 0.0858 in. 2.21 mm 0.0870 in. 2.24 mm 0.0882 in. 2.27 mm 0.0894 in. 2.30 mm 0.0906 in. 2.33 mm 0.0917 in. Side bearing adjusting plate thickness 2.57 - 2.59 mm 0.1012 - 0.1020 in. 2.60 - 2.62 mm 0.1024 - 0.1031 in. 2.63 - 2.65 mm 0.1035 - 0.1043 in. 2.66 - 2.68 mm 0.1047 - 0.1055 in. 2.69 - 2.71 mm 0.1059 - 0.1067 in. 2.72 - 2.74 mm 0.1071 - 0.1079 in. 2.75 - 2.77 mm 0.1083 - 0.1091 in. 2.78 - 2.80 mm 0.1094 - 0.1102 in. 2.81 - 2.83 mm 0.1106 - 0.1114 in. 2.84 - 2.86 mm 0.1118 - 0.1126 in. 2.87 - 2.89 mm 0.1130 - 0.1138 in. 2.90 - 2.92 mm 0.1142 - 0.1150 in. 2.93 - 2.95 mm 0.1154 - 0.1161 in. 2.96 - 2.98 mm 0.1165 - 0.1173 in. 2.99 - 3.01 mm 0.1177 - 0.1185 in. 3.02 - 3.04 mm 0.1189 - 0.1197 in. 3.05 - 3.07 mm 0.1201 - 0.1209 in. 3.08 - 3.10 mm 0.1213 - 0.1220 in. 3.11 - 3.13 mm 0.1224 - 0.1232 in. 3.14 - 3.16 mm 0.1236 - 0.1244 in. 3.17 - 3.19 mm 0.1248 - 0.1256 in. 3.20 - 3.22 mm 0.1260 - 0.1268 in. 3.23 - 3.25 mm 0.1272 - 0.1280 in. 3.26 - 3.28 mm 0.1283 - 0.1291 in. 3.29 - 3.31 mm 0.1295 - 0.1303 in. 3.32 - 3.34 mm 0.1307 - 0.1315 in. 3.35 - 3.37 mm 0.1319 - 0.1327 in. 3.38 - 3.40 mm 0.1331 - 0.1339 in. 3.41 - 3.43 mm 0.1343 - 0.1350 in. 3.44 - 3.46 mm 0.1354 - 0.1362 in. 3.47 - 3.49 mm 0.1366 - 0.1374 in.
