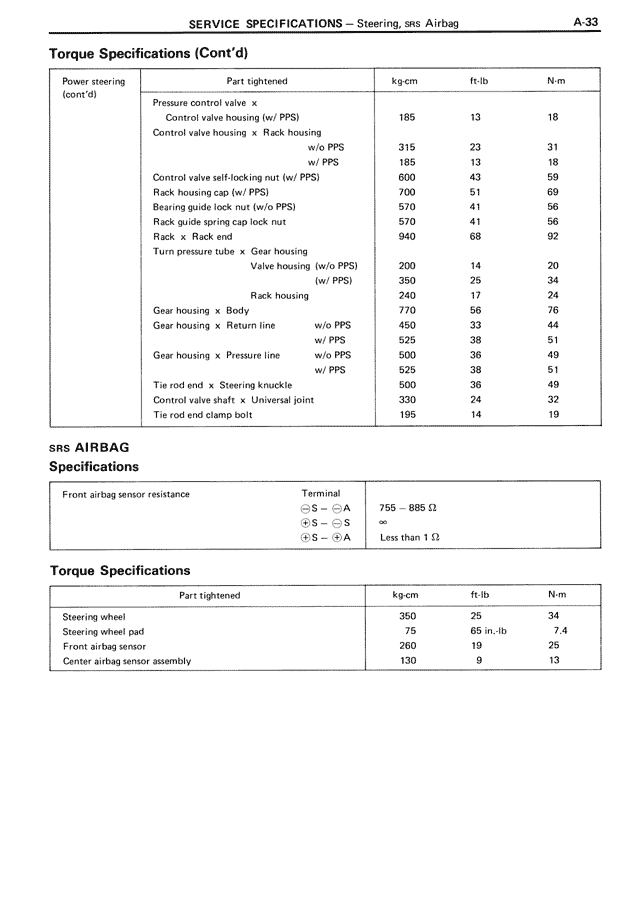

A/Service Specifications, page 33

Torque Specifications (Cont'd)

Power steering
(cont'd)

Part tightened

Pressure control valve ×
  Control valve housing (w/ PPS)
  Control valve housing × Rack housing
    w/o PPS
    w/ PPS
  Control valve self-locking nut (w/ PPS)
  Rack housing cap (w/ PPS)
  Bearing guide lock nut (w/o PPS)
  Rack guide spring cap lock nut
  Rack × Rack end
Turn pressure tube × Gear housing
  Valve housing (w/o PPS)
              (w/ PPS)
  Rack housing
Gear housing × Body
  Gear housing × Return line
    w/o PPS
    w/ PPS
  Gear housing × Pressure line
    w/o PPS
    w/ PPS
Tie rod end × Steering knuckle
Control valve shaft × Universal joint
Tie rod end clamp bolt

kg·cm    ft·lb    N·m

185      13       18

315      23       31
185      13       18
600      43       59
700      51       69
570      41       56
570      41       56
940      68       92

200      14       20
350      25       34
240      17       24
770      56       76
450      33       44
525      38       51
500      36       49
525      38       51
500      36       49
330      24       32
195      14       19

srs AIRBAG
Specifications

Front airbag sensor resistance

Terminal
⊕S — ⊖A    756 — 885 Ω
⊕S — ⊖S    ∞
⊕S — ⊖A    Less than 1 Ω

Torque Specifications

Part tightened

Steering wheel
Steering wheel pad
Front airbag sensor
Center airbag sensor assembly

kg·cm    ft·lb      N·m

350      25         34
75       65 in.·lb  7.4
260      19         25
130      9          13
