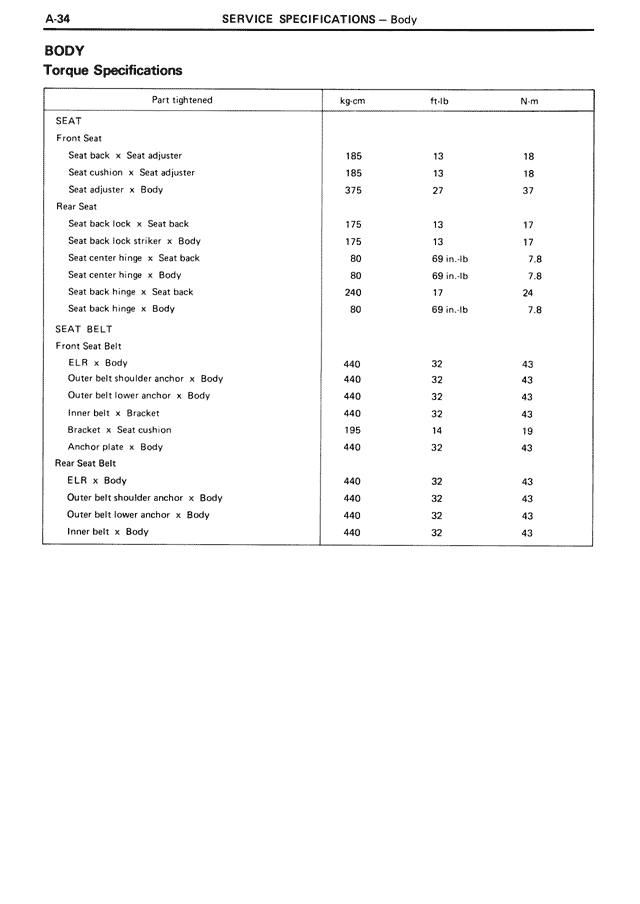

A/Service Specifications — Body Torque Specifications, page 34

A-34
SERVICE SPECIFICATIONS — Body

BODY
Torque Specifications

Part tightened                                kg·cm        ft·lb        N·m

SEAT
Front Seat
  Seat back × Seat adjuster                   185          13          18
  Seat cushion × Seat adjuster                 185          13          18
  Seat adjuster × Body                         375          27          37
Rear Seat
  Seat back lock × Seat back                   175          13          17
  Seat back lock striker × Body                175          13          17
  Seat center hinge × Seat back                80           69 in.·lb    7.8
  Seat center hinge × Body                     80           69 in.·lb    7.8
  Seat back hinge × Seat back                  240          17          24
  Seat back hinge × Body                       80           69 in.·lb    7.8

SEAT BELT
Front Seat Belt
  ELR × Body                                   440          32          43
  Outer belt shoulder anchor × Body            440          32          43
  Outer belt lower anchor × Body               440          32          43
  Inner belt × Bracket                         440          32          43
  Bracket × Seat cushion                       195          14          19
  Anchor plate × Body                          440          32          43
Rear Seat Belt
  ELR × Body                                   440          32          43
  Outer belt shoulder anchor × Body            440          32          43
  Outer belt lower anchor × Body               440          32          43
  Inner belt × Body                            440          32          43
