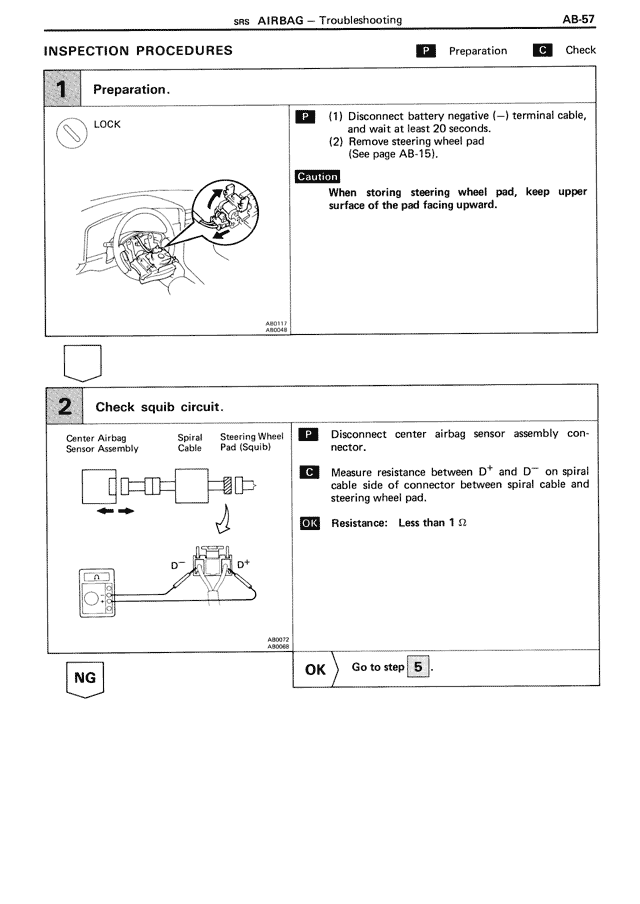

AB/SRS Airbag — Inspection Procedures, page 57

SRS AIRBAG — Troubleshooting AB-57

INSPECTION PROCEDURES

P Preparation C Check

1 Preparation.

LOCK

P (1) Disconnect battery negative (—) terminal cable, and wait at least 20 seconds.
(2) Remove steering wheel pad (See page AB-15).

Caution
When storing steering wheel pad, keep upper surface of the pad facing upward.

AB0112

2 Check squib circuit.

Center Airbag Spiral Steering Wheel
Sensor Assembly Cable Pad (Squib)

D+ D—

AB0012
AB0028

P Disconnect center airbag sensor assembly connector.

C Measure resistance between D+ and D— on spiral cable side of connector between spiral cable and steering wheel pad.

OK Resistance: Less than 1 Ω

NG

OK Go to step 5
