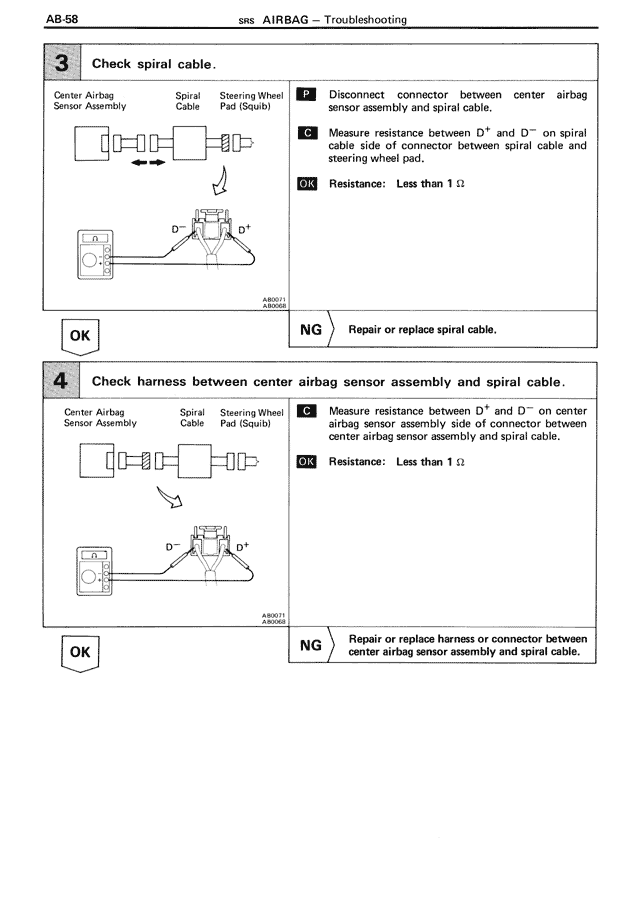

AB-58
SRS AIRBAG — Troubleshooting
3
Check spiral cable.
Center Airbag
Sensor Assembly
Spiral
Cable
Steering Wheel
Pad (Squib)
D⁺
D⁻
AB0011
AB0058
P
Disconnect connector between center airbag
sensor assembly and spiral cable.
C
Measure resistance between D⁺ and D⁻ on spiral
cable side of connector between spiral cable and
steering wheel pad.
OK
Resistance: Less than 1 Ω
OK
NG
Repair or replace spiral cable.
4
Check harness between center airbag sensor assembly and spiral cable.
Center Airbag
Sensor Assembly
Spiral
Cable
Steering Wheel
Pad (Squib)
D⁺
D⁻
AB0011
AB0058
C
Measure resistance between D⁺ and D⁻ on center
airbag sensor assembly side of connector between
center airbag sensor assembly and spiral cable.
OK
Resistance: Less than 1 Ω
OK
NG
Repair or replace harness or connector between
center airbag sensor assembly and spiral cable.
