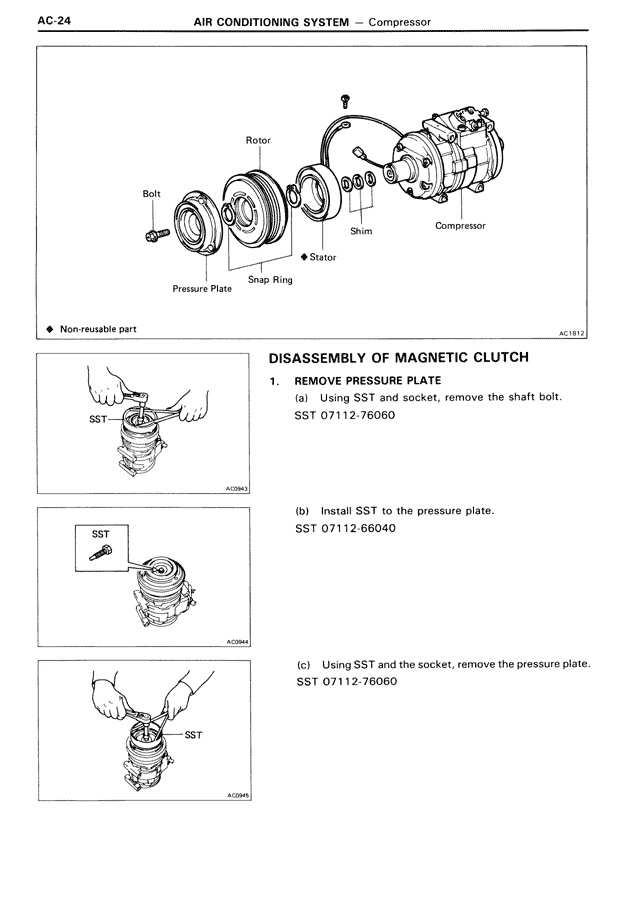

AC-24 AIR CONDITIONING SYSTEM — Compressor Rotor Bolt Stator Snap Ring Pressure Plate Shim Compressor ♦ Non-reusable part AC1812 DISASSEMBLY OF MAGNETIC CLUTCH 1. REMOVE PRESSURE PLATE (a) Using SST and socket, remove the shaft bolt. SST 07112-76060 SST AC0943 (b) Install SST to the pressure plate. SST 07112-66040 SST AC0944 (c) Using SST and the socket, remove the pressure plate. SST 07112-76060 SST AC0945
