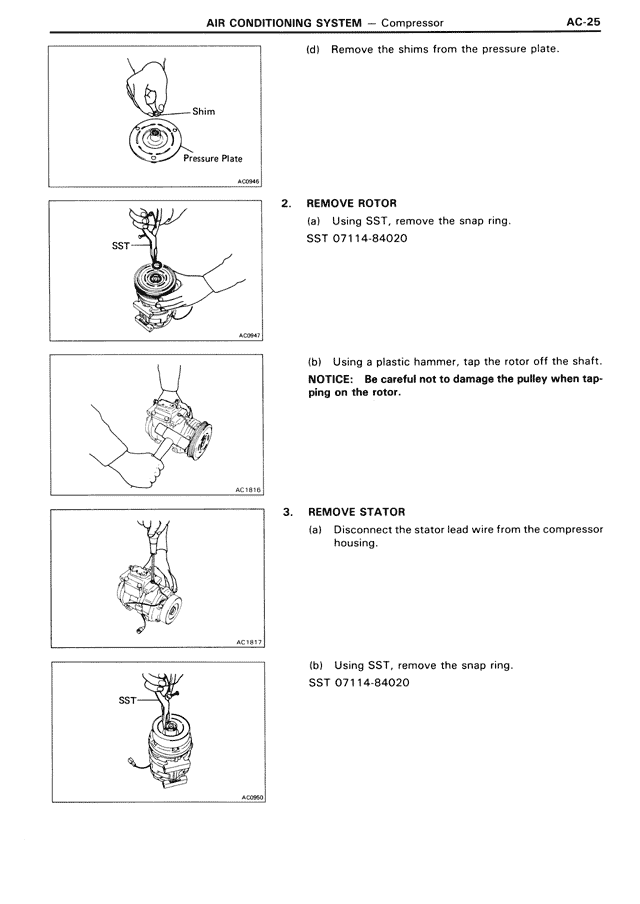

AIR CONDITIONING SYSTEM — Compressor                                AC-25

(d) Remove the shims from the pressure plate.

Shim
Pressure Plate
AC0661

2. REMOVE ROTOR
(a) Using SST, remove the snap ring.
SST 07114-84020

SST
AC0661

(b) Using a plastic hammer, tap the rotor off the shaft.
NOTICE: Be careful not to damage the when tapping on the rotor.

AC1616

3. REMOVE STATOR
(a) Disconnect the stator lead wire from the compressor housing.

AC1617

(b) Using SST, remove the snap ring.
SST 07114-84020

SST
AC0660
