← p.006
AC
/
Air Conditioning System
7 / 46
p.008 →
−
100%
+

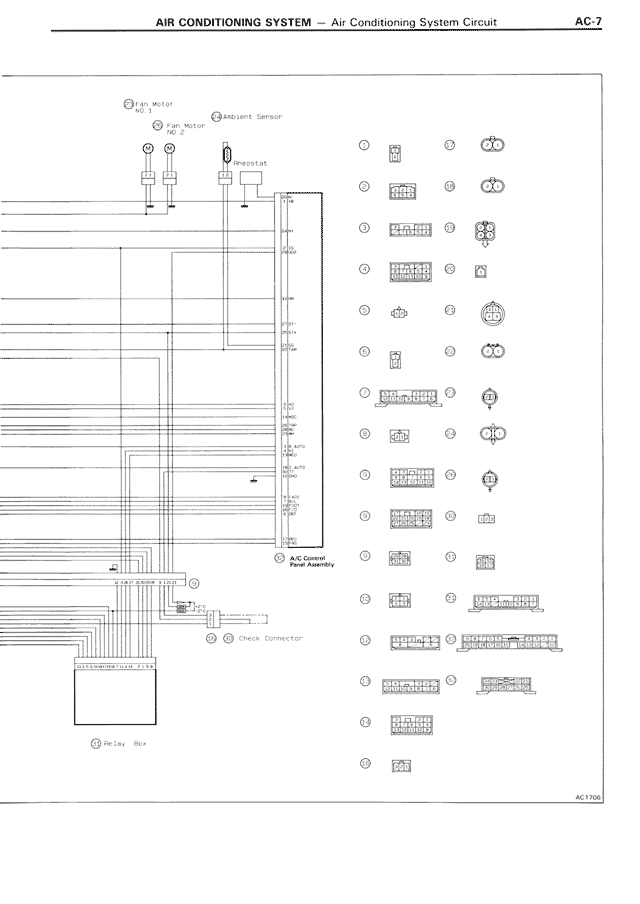

AIR CONDITIONING SYSTEM — Air Conditioning System Circuit AC-7 A Fan Motor Relay B Ambient Sensor C Fan Motor No.2 1 2 3 Thermostat 4 A/C Amplifier Relay Assembly D Check Connector E Relay Box AC1700
