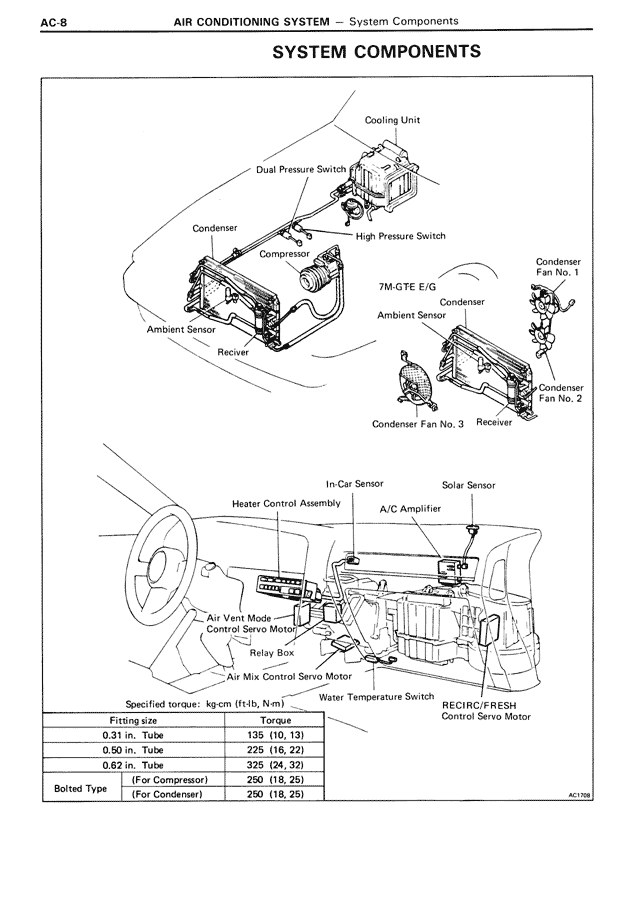

SYSTEM COMPONENTS
Cooling Unit
Dual Pressure Switch
Condenser
High Pressure Switch
Compressor
7M-GTE E/G
Condenser Fan No. 1
Ambient Sensor
Condenser
Receiver
Ambient Sensor
Condenser Fan No. 2
Receiver
Condenser Fan No. 3
In-Car Sensor
Solar Sensor
Heater Control Assembly
A/C Amplifier
Air Vent Mode
Control Servo Motor
Relay Box
Air Mix Control Servo Motor
Water Temperature Switch
RECIRC/FRESH
Control Servo Motor
Specified torque: kg·cm (ft·lb, N·m)
Fitting size | Torque
0.31 in. Tube | 135 (10, 13)
0.50 in. Tube | 225 (16, 22)
0.62 in. Tube | 325 (24, 32)
Bolted Type (For Compressor) | 250 (18, 25)
Bolted Type (For Condenser) | 250 (18, 25)
AC7198
