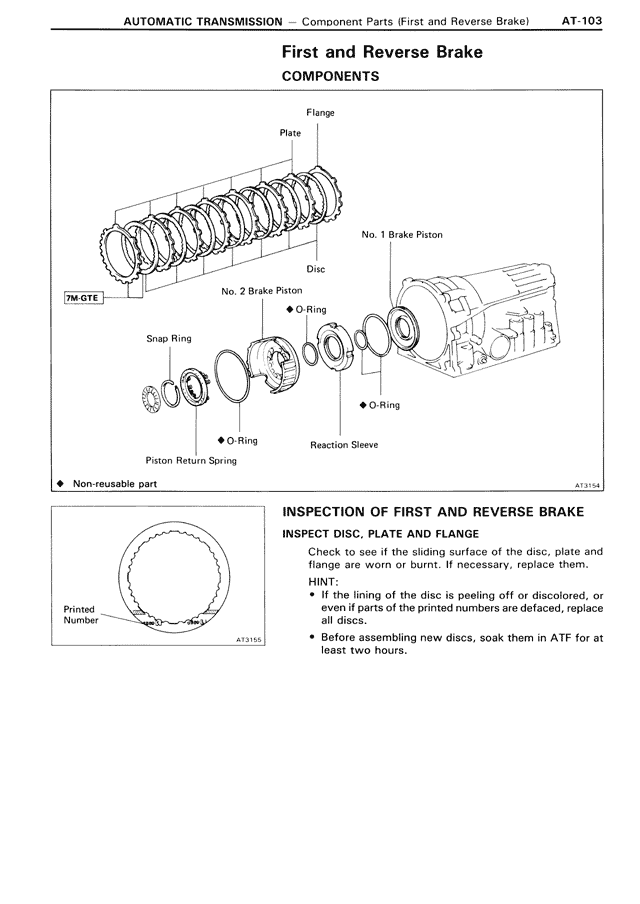

First and Reverse Brake
COMPONENTS
Flange
Plate
No. 1 Brake Piston
Disc
7M-GTE
No. 2 Brake Piston
♦ O-Ring
Snap Ring
♦ O-Ring
Reaction Sleeve
Piston Return Spring
♦ O-Ring
♦ Non-reusable part
AT3154
INSPECTION OF FIRST AND REVERSE BRAKE
INSPECT DISC, PLATE AND FLANGE
Check to see if the sliding surface of the disc, plate and flange are worn or burnt. If necessary, replace them.
HINT:
• If the lining of the disc is peeling off or discolored, or even if parts of the printed numbers are defaced, replace all discs.
• Before assembling new discs, soak them in ATF for at least two hours.
Printed
Number
AT3155
