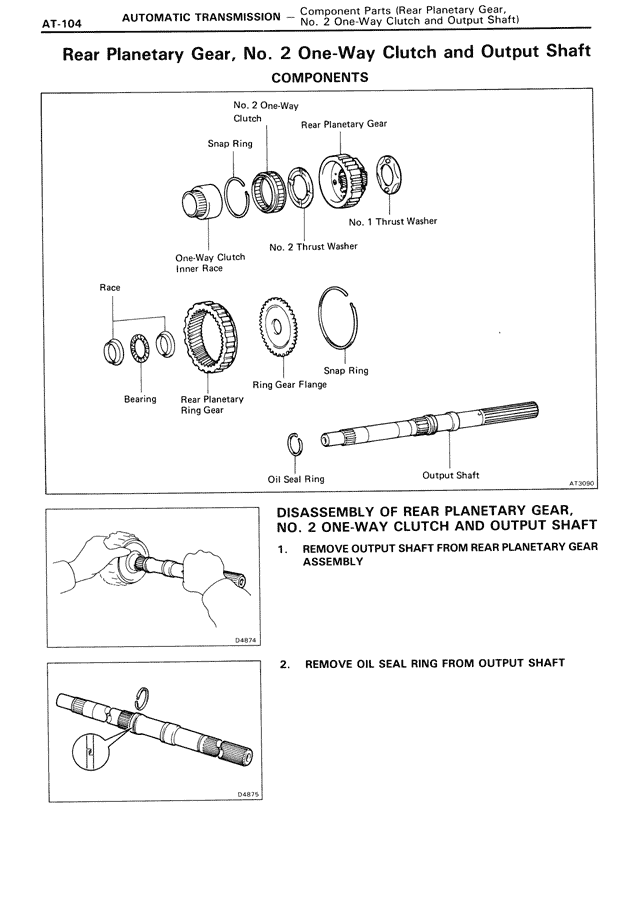

AT/Automatic Transmission — Rear Planetary Gear, No. 2 One-Way Clutch and Output Shaft, page 104

AT-104

AUTOMATIC TRANSMISSION — Component Parts (Rear Planetary Gear, No. 2 One-Way Clutch and Output Shaft)

Rear Planetary Gear, No. 2 One-Way Clutch and Output Shaft

COMPONENTS

No. 2 One-Way
Clutch
Rear Planetary Gear

Snap Ring

No. 1 Thrust Washer

No. 2 Thrust Washer
One-Way Clutch
Inner Race

Race

Bearing

Snap Ring
Ring Gear Flange
Rear Planetary
Ring Gear

Oil Seal Ring
Output Shaft

AT3090

DISASSEMBLY OF REAR PLANETARY GEAR,
NO. 2 ONE-WAY CLUTCH AND OUTPUT SHAFT

1. REMOVE OUTPUT SHAFT FROM REAR PLANETARY GEAR
ASSEMBLY

D4B174

2. REMOVE OIL SEAL RING FROM OUTPUT SHAFT

D4B176
