AUTOMATIC TRANSMISSION — Component Parts (Rear Planetary Gear, No. 2 One-Way Clutch and Output Shaft) — MK3 Supra Automatic Transmission, page 105
100%

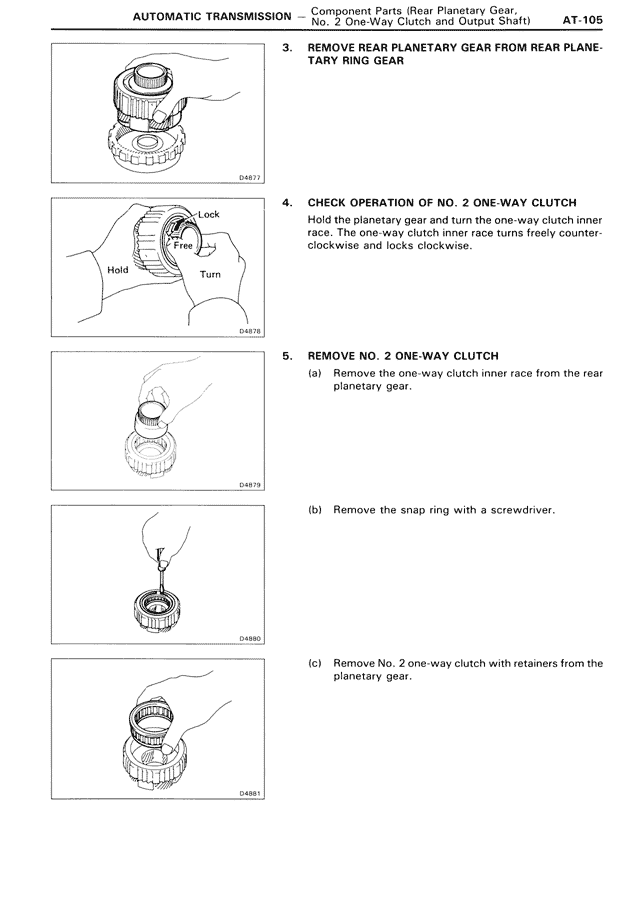

AUTOMATIC TRANSMISSION — Component Parts (Rear Planetary Gear, No. 2 One-Way Clutch and Output Shaft) AT-105 3. REMOVE REAR PLANETARY GEAR FROM REAR PLANE- TARY RING GEAR D3477 4. CHECK OPERATION OF NO. 2 ONE-WAY CLUTCH Hold the planetary gear and turn the one-way clutch inner race. The one-way clutch inner race turns freely counter- clockwise and locks clockwise. Lock Free Hold Turn D3478 5. REMOVE NO. 2 ONE-WAY CLUTCH (a) Remove the one-way clutch inner race from the rear planetary gear. D3479 (b) Remove the snap ring with a screwdriver. D3480 (c) Remove No. 2 one-way clutch with retainers from the planetary gear. D3481
