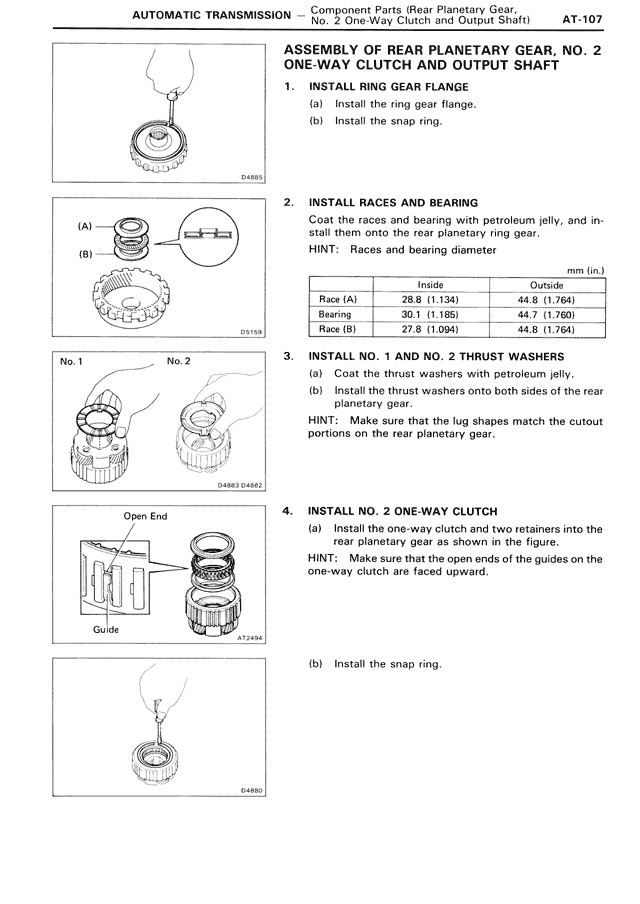

AT/Automatic Transmission — Assembly of Rear Planetary Gear, No. 2 One-Way Clutch and Output Shaft, page 107

AUTOMATIC TRANSMISSION — Component Parts (Rear Planetary Gear,
No. 2 One-Way Clutch and Output Shaft)
AT-107

ASSEMBLY OF REAR PLANETARY GEAR, NO. 2
ONE-WAY CLUTCH AND OUTPUT SHAFT

1. INSTALL RING GEAR FLANGE
(a) Install the ring gear flange.
(b) Install the snap ring.

D4885

2. INSTALL RACES AND BEARING
Coat the races and bearing with petroleum jelly, and in-
stall them onto the rear planetary ring gear.
HINT: Races and bearing diameter

mm (in.)
Inside          Outside
Race (A)    28.8 (1.134)    54.8 (1.764)
Bearing     30.1 (1.185)    44.7 (1.760)
Race (B)    27.8 (1.094)    44.8 (1.764)

D5159

3. INSTALL NO. 1 AND NO. 2 THRUST WASHERS
(a) Coat the thrust washers with petroleum jelly.
(b) Install the thrust washers onto both sides of the rear
planetary gear.
HINT: Make sure that the lug shapes match the cutout
portions on the rear planetary gear.

No. 1        No. 2

D4883 D4882

4. INSTALL NO. 2 ONE-WAY CLUTCH
(a) Install the one-way clutch retainers into the
rear planetary gear as shown in the figure.
HINT: Make sure that the open ends of the guides on the
one-way clutch are faced upward.

Open End

Guide

47358

(b) Install the snap ring.

D4880
