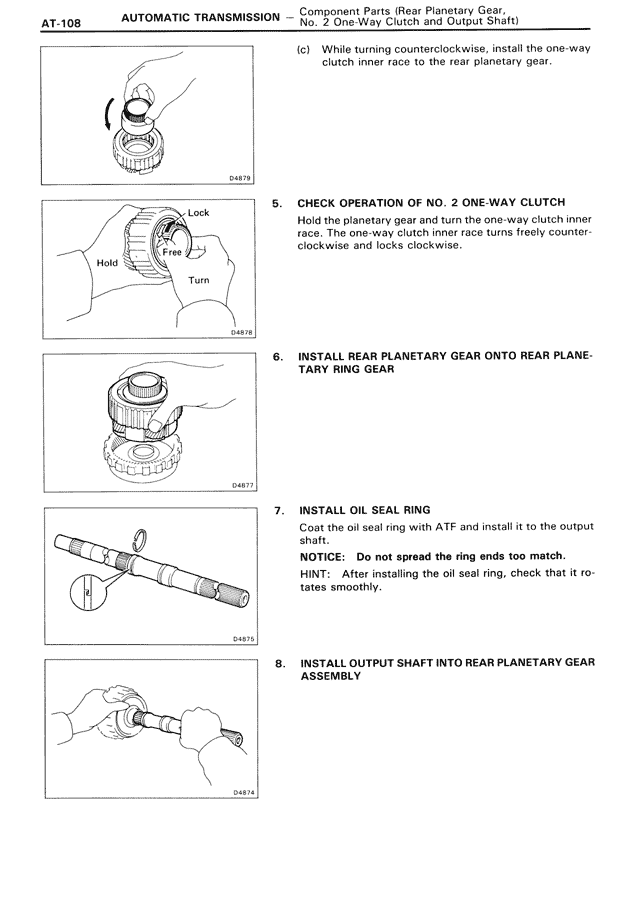

AT-108
AUTOMATIC TRANSMISSION — Component Parts (Rear Planetary Gear, No. 2 One-Way Clutch and Output Shaft)
(c) While turning counterclockwise, install the one-way clutch inner race to the rear planetary gear.
[Image D4879 showing installation]
5. CHECK OPERATION OF NO. 2 ONE-WAY CLUTCH
Hold the planetary gear and turn the one-way clutch inner race. The one-way clutch inner race turns freely counterclockwise and locks clockwise.
[Image D4878 showing Lock, Free, Hold, and Turn positions]
6. INSTALL REAR PLANETARY GEAR ONTO REAR PLANETARY RING GEAR
[Image D4871 showing assembly]
7. INSTALL OIL SEAL RING
Coat the oil seal ring with ATF and install it to the output shaft.
NOTICE: Do not spread the ring ends too match.
HINT: After installing the oil seal ring, check that it rotates smoothly.
[Image D4875 showing oil seal ring installation]
8. INSTALL OUTPUT SHAFT INTO REAR PLANETARY GEAR ASSEMBLY
[Image D4874 showing installation]
