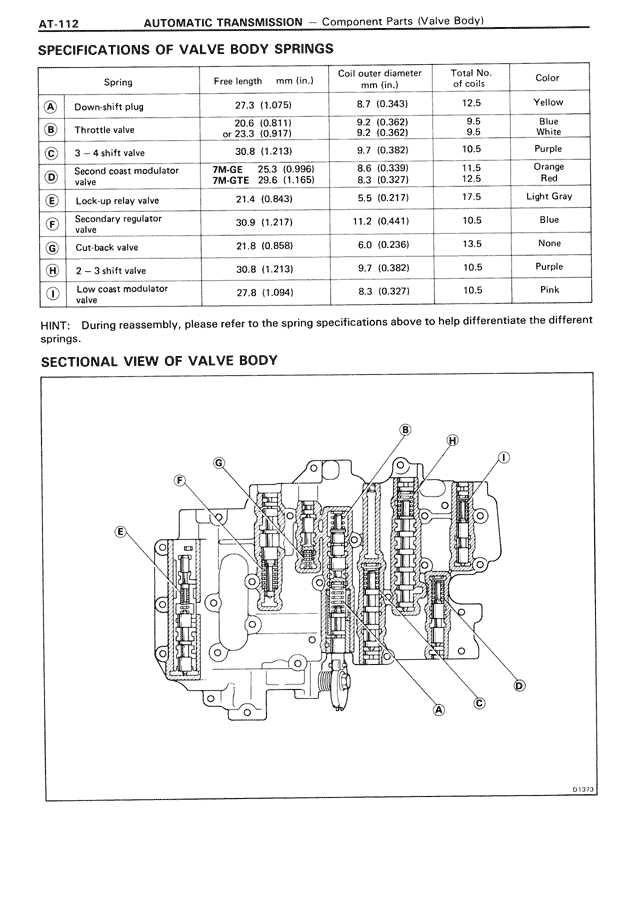

AT/Automatic Transmission — Specifications of Valve Body Springs, page 112

AT-112          AUTOMATIC TRANSMISSION — Component Parts (Valve Body)

SPECIFICATIONS OF VALVE BODY SPRINGS

Spring                           Free length    mm (in.)    Coil outer diameter    Total No.         Color
                                                              mm (in.)              of coils

A    Down shift plug              27.3 (1.075)               8.7 (0.343)           12.5              Yellow

B    Throttle valve               20.6 (0.811)               9.2 (0.362)           9.5               Blue
                                   or 23.3 (0.917)            9.2 (0.362)           9.5               White

C    3 — 4 shift valve            30.8 (1.213)               9.7 (0.382)           10.5              Purple

D    Second coast modulator       7M-GE    25.3 (0.996)      8.6 (0.339)           11.5              Orange
     valve                         7M-GTE   29.6 (1.165)      8.3 (0.327)           12.5              Red

E    Lock-up relay valve          21.4 (0.843)               5.5 (0.217)           17.5              Light Gray

F    Secondary regulator          30.9 (1.217)               11.2 (0.441)          10.5              Blue
     valve

G    Cut-back valve               21.8 (0.858)               6.0 (0.236)           13.5              None

H    2 — 3 shift valve            30.8 (1.213)               9.7 (0.382)           10.5              Purple

I    Low coast modulator          27.8 (1.094)               8.3 (0.327)           10.5              Pink
     valve

HINT: During reassembly, please refer to the spring specifications above to help differentiate the different
springs.

SECTIONAL VIEW OF VALVE BODY

[Diagram showing sectional view of valve body with labeled components A through I and D13173]
