AUTOMATIC TRANSMISSION — Component Parts (Valve Body)     AT-111

(Upper Valve Body)

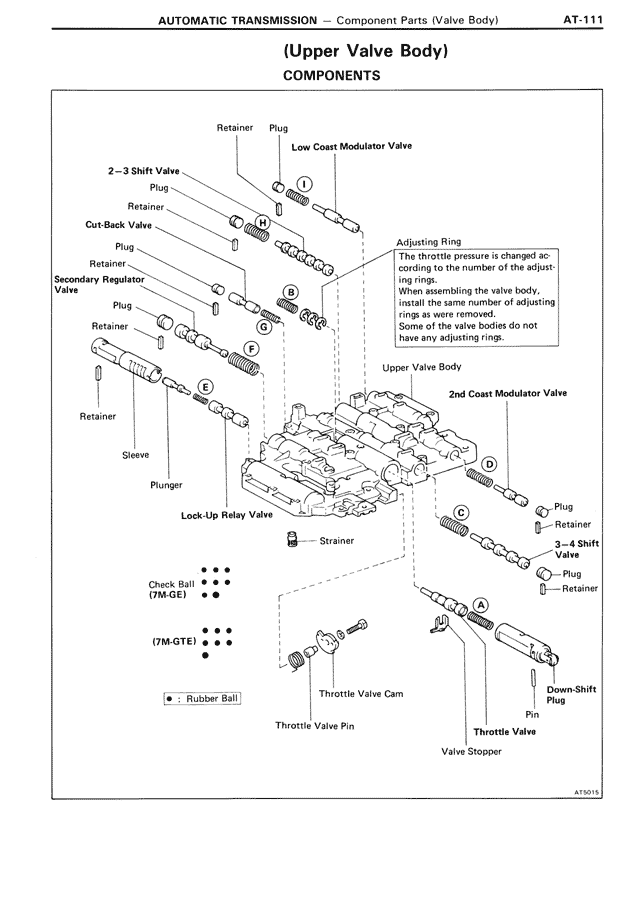

COMPONENTS

Retainer   Plug
                    Low Coast Modulator Valve
2-3 Shift Valve
        Plug
        Retainer
Cut-Back Valve

Plug
        Retainer
Secondary Regulator
Valve
        Plug
        Retainer

                                        Adjusting Ring
                                        The throttle pressure is changed ac-
                                        cording to the number of adjusting
                                        rings.
                                        When assembling the valve body,
                                        install the same number of adjusting
                                        rings as were removed.
                                        Some of the valve bodies do not
                                        have any adjusting ring.

                                        Upper Valve Body
                                                                2nd Coast Modulator Valve

Retainer

Sleeve

Plunger
                                                Lock-Up Relay Valve

                                                        Strainer

                        Check Ball    •••
                        (7M-GE)      •••
                                     •••

                        (7M-GTE)     •••
                                     •••
                                      •

                        • : Rubber Ball

                                        Throttle Valve Cam

                        Throttle Valve Pin

                                                                        3-4 Shift
                                                                        Valve
                                                                        Plug
                                                                        Retainer


                                                                        Down-Shift
                                                                        Plug
                                                                Pin
                                                        Throttle Valve

                                        Valve Stopper
